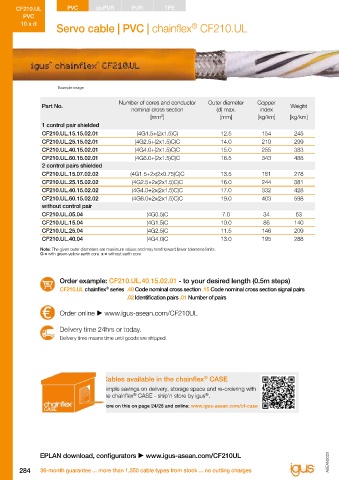

Page 290 - ASEAN Chainflex Catalogue 2023

CF210.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF210.UL
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Servo cable | PVC | chainflex CF210.UL Class 4.2.2.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
1 control pair shielded
CF210.UL.15.15.02.01 (4G1.5+(2x1.5)C) 12.5 154 245
CF210.UL.25.15.02.01 (4G2.5+(2x1.5)C)C 14.0 210 299
CF210.UL.40.15.02.01 (4G4.0+(2x1.5)C)C 15.0 255 383
CF210.UL.60.15.02.01 (4G6.0+(2x1.5)C)C 16.5 343 488
2 control pairs shielded
CF210.UL.15.07.02.02 (4G1.5+2x(2x0.75)C)C 13.5 161 278
CF210.UL.25.15.02.02 (4G2.5+2x(2x1.5)C)C 16.0 244 381
CF210.UL.40.15.02.02 (4G4.0+2x(2x1.5)C)C 17.0 332 428
CF210.UL.60.15.02.02 (4G6.0+2x(2x1.5)C)C 19.0 403 598
without control pair
CF210.UL.05.04 (4G0.5)C 7.0 34 63
CF210.UL.15.04 (4G1.5)C 10.0 86 140
CF210.UL.25.04 (4G2.5)C 11.5 146 209
CF210.UL.40.04 (4G4.0)C 13.0 195 288
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Order example: CF210.UL.40.15.02.01 - to your desired length (0.5m steps)
®
CF210.UL chainflex series .40 Code nominal cross section .15 Code nominal cross section signal pairs
.02 Identification pairs .01 Number of pairs

Order online  www.igus-asean.com/CF210UL

Delivery time 24hrs or today.
Delivery time means time until goods are shipped.

chainflex servo cable in a vertical e-chain ®
®
Cables available in the chainflex CASE
®
Simple savings on delivery, storage space and re-ordering with
the chainflex CASE - ship'n store by igus .
®
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF210UL
