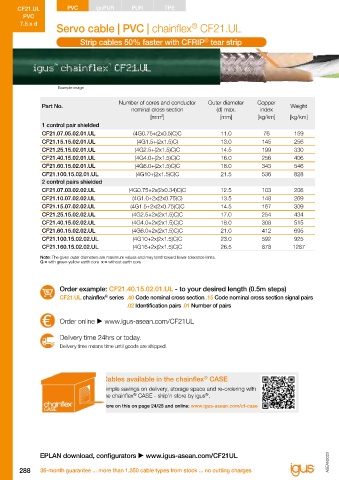

Page 294 - ASEAN Chainflex Catalogue 2023

CF21.UL PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF21.UL
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Servo cable | PVC | chainflex CF21.UL Class 5.5.2.1 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
1 control pair shielded
CF21.07.05.02.01.UL (4G0.75+(2x0.5)C)C 11.0 76 159
CF21.15.15.02.01.UL (4G1.5+(2x1.5)C) 13.0 145 256
CF21.25.15.02.01.UL (4G2.5+(2x1.5)C)C 14.5 199 330
CF21.40.15.02.01.UL (4G4.0+(2x1.5)C)C 16.0 256 406
CF21.60.15.02.01.UL (4G6.0+(2x1.5)C)C 18.0 343 546
CF21.100.15.02.01.UL (4G10+(2x1.5)C)C 21.5 536 828
2 control pairs shielded
CF21.07.03.02.02.UL (4G0.75+2x(2x0.34)C)C 12.5 103 208
CF21.10.07.02.02.UL (4G1.0+2x(2x0.75)C) 13.5 148 269
CF21.15.07.02.02.UL (4G1.5+2x(2x0.75)C)C 14.5 167 309
CF21.25.15.02.02.UL (4G2.5+2x(2x1.5)C)C 17.0 254 434
CF21.40.15.02.02.UL (4G4.0+2x(2x1.5)C)C 18.0 308 515
CF21.60.15.02.02.UL (4G6.0+2x(2x1.5)C)C 21.0 412 695
CF21.100.15.02.02.UL (4G10+2x(2x1.5)C)C 23.0 592 925
CF21.160.15.02.02.UL (4G16+2x(2x1.5)C)C 26.5 878 1287

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Order example: CF21.40.15.02.01.UL - to your desired length (0.5m steps)
®
CF21.UL chainflex series .40 Code nominal cross section .15 Code nominal cross section signal pairs
.02 Identification pairs .01 Number of pairs

Order online  www.igus-asean.com/CF21UL

Delivery time 24hrs or today. chainflex CF21.UL: cables for energy supply systems
®
®
Delivery time means time until goods are shipped. in spinneret production. e-chain : E2/000

®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF21UL
