CF897 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF897
iguPUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m iguPUR
15 x d ® Oil resistance none 1 2 3 4 highest 15 x d

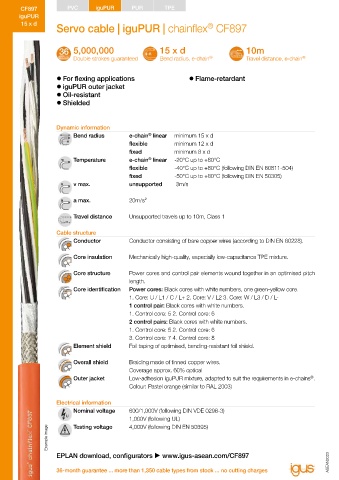

Servo cable | iguPUR | chainflex CF897 Class 3.1.3.1 Torsion none 1 2 3 4 ±360°

5,000,000 15 x d 10m Properties and approvals Medium
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z For flexing applications z Flame-retardant
z iguPUR outer jacket Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Oil-resistant
z Shielded Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Dynamic information service life calculator based on 2 billion test cycles per year"
®
Bend radius e-chain linear minimum 15 x d UL/CSA AWM See data sheet for details  www.igus-asean.com/CF897
flexible minimum 12 x d
fixed minimum 8 x d NFPA Following NFPA 79-2018, chapter 12.9
Temperature e-chain linear -20°C up to +80°C
®
flexible -40°C up to +80°C (following DIN EN 60811-504) EAC Certificate No. RU C-DE.ME77.B.00302/19
fixed -50°C up to +80°C (following DIN EN 50305)
v max. unsupported 3m/s REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

a max. 20m/s² Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Travel distance Unsupported travels up to 10m, Class 1 CE Following 2014/35/EU

Cable structure UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Conductor Conductor consisting of bare copper wires (according to DIN EN 60228).
Guaranteed service life (details see page 28-29)
Core insulation Mechanically high-quality, especially low-capacitance TPE mixture. Double strokes* 1 million 3 million 5 million

Temperature, R min. R min. R min.
Core structure Power cores and control pair elements wound together in an optimised pitch from/to [°C] [factor x d] [factor x d] [factor x d]
length. -20/-10 17.5 18.5 19.5
Core identification Power cores: Black cores with white numbers, one green-yellow core. -10/+70 15 16 17
1. Core: U / L1 / C / L+ 2. Core: V / L2 3. Core: W / L3 / D / L- +70/+80 17.5 18.5 19.5
1 control pair: Black cores with white numbers. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
1. Control core: 5 2. Control core: 6
2 control pairs: Black cores with white numbers. Typical application areas
1. Control core: 5 2. Control core: 6 z For flexing applications, Class 3
3. Control core: 7 4. Control core: 8 z Especially for unsupported travels, Class 1
Element shield Foil taping of optimised, bending-resistant foil shield. z With influence of oil, Class 3
z No torsion, Class 1
Overall shield Braiding made of tinned copper wires. z Indoor and outdoor applications without direct sun radiation
Coverage approx. 60% optical z Machining units/machine tools, low temperature applications
®
Outer jacket Low-adhesion iguPUR mixture, adapted to suit the requirements in e-chains .
Colour: Pastel orange (similar to RAL 2003) Number of cores and conductor Outer diameter Copper
Part No. Weight
nominal cross section (d) max. index
Electrical information [mm²] [mm] [kg/km] [kg/km]
Nominal voltage 600/1,000V (following DIN VDE 0298-3) 1 control pair shielded
(4G1.5+(2x1.5)C)
1,000V (following UL) CF897.15.15.02.01 (4G2.5+(2x1.5)C)C 12.5 124 201
CF897.25.15.02.01
248
182
13.5
4,000V (following DIN EN 50395)
Example image CF897.40.15.02.01 (4G4.0+(2x1.5)C)C 14.5 236 329
Testing voltage
2 control pairs shielded
13.5
(4G1.5+2x(2x1.5)C)C
CF897.15.15.02.02
EPLAN download, configurators  www.igus-asean.com/CF897 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. 164 246
290 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 G = with green-yellow earth core x = without earth core ® 291
