CF270.UL.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF270.UL.D
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Servo cable | PUR | chainflex CF270.UL.D Class 4.2.3.1 Torsion none 1 2 3 4 ±360°

Example image

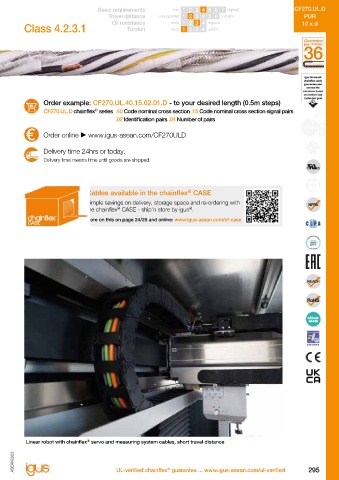

Number of cores and conductor Outer diameter Copper Order example: CF270.UL.40.15.02.01.D - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF270.UL.D chainflex series .40 Code nominal cross section .15 Code nominal cross section signal pairs
®
[mm²] [mm] [kg/km] [kg/km] .02 Identification pairs .01 Number of pairs
1 control pair shielded
CF270.UL.15.15.02.01.D (4G1.5+(2x1.5)C) 11.5 146 190 Order online  www.igus-asean.com/CF270ULD
CF270.UL.25.15.02.01.D (4G2.5+(2x1.5)C)C 13.0 195 248
CF270.UL.40.15.02.01.D (4G4.0+(2x1.5)C)C 15.0 260 328 Delivery time 24hrs or today.
CF270.UL.60.15.02.01.D (4G6.0+(2x1.5)C)C 16.5 350 430 Delivery time means time until goods are shipped.
CF270.UL.100.15.02.01.D (4G10+(2x1.5)C)C 19.0 541 624
CF270.UL.160.15.02.01.D (4G16+(2x1.5)C)C 22.0 786 900
2 control pairs shielded
CF270.UL.07.03.02.02.D (4G0.75+2x(2x0.34)C)C 11.0 96 151 Cables available in the chainflex CASE
®
CF270.UL.10.07.02.02.D (4G1.0+2x(2x0.75)C) 12.5 139 200
CF270.UL.15.07.02.02.D (4G1.5+2x(2x0.75)C)C 12.5 162 210 Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
CF270.UL.25.15.02.02.D (4G2.5+2x(2x1.5)C)C 15.5 265 322
CF270.UL.40.15.02.02.D (4G4.0+2x(2x1.5)C)C 16.5 322 403 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF270.UL.60.15.02.02.D (4G6.0+2x(2x1.5)C)C 18.5 407 505
CF270.UL.100.15.02.02.D (4G10+2x(2x1.5)C)C 21.0 604 703
CF270.UL.160.15.02.02.D (4G16+2x(2x1.5)C)C 24.0 857 997
CF270.UL.250.15.02.02.D (4G25+2x(2x1.5)C)C 27.5 1219 1422
without control pair
CF270.UL.07.04.D (4G0.75)C 8.0 47 81
CF270.UL.10.06.D (6G1.0)C 9.5 87 133
CF270.UL.15.04.D (4G1.5)C 9.0 78 116
CF270.UL.25.04.D (4G2.5)C 10.5 129 173
CF270.UL.40.04.D (4G4.0)C 12.5 193 255
CF270.UL.60.04.D (4G6.0)C 14.5 297 356
CF270.UL.100.04.D (4G10)C 17.0 495 551
CF270.UL.160.04.D (4G16)C 20.5 755 819
CF270.UL.250.04.D (4G25)C 25.0 1117 1256
CF270.UL.350.04.D (4G35)C 28.0 1597 1696
Spindle cable/Single core
CF270.UL.60.01.D (1x6.0)C 7.5 72 95
CF270.UL.100.01.D (1x10)C 8.5 114 145
CF270.UL.160.01.D (1x16)C 9.5 178 209
CF270.UL.250.01.D (1x25)C 11.0 269 304
CF270.UL.350.01.D (1x35)C 13.0 374 419
CF270.UL.500.01.D (1x50)C 15.0 525 579
CF270.UL.700.01.D (1x70)C 17.0 751 804
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Linear robot with chainflex servo and measuring system cables, short travel distance
®
EPLAN download, configurators  www.igus-asean.com/CF270ULD
