CF27.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF27.D
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d

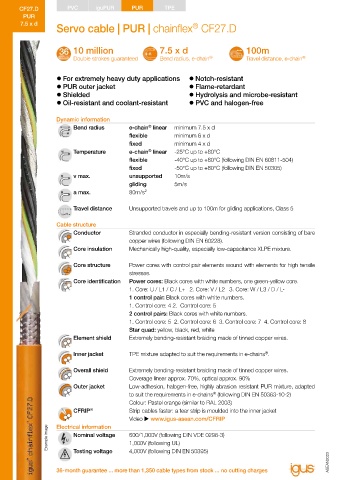

Servo cable | PUR | chainflex CF27.D Class 6.5.3.1 Torsion none 1 2 3 4 ±360°

10 million 7.5 x d 100m Properties and approvals Medium
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z For extremely heavy duty applications z Notch-resistant
z PUR outer jacket z Flame-retardant Offshore MUD-resistant following NEK 606 - status 2016
z Shielded z Hydrolysis and microbe-resistant
z Oil-resistant and coolant-resistant z PVC and halogen-free Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame

Dynamic information Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
Bend radius e-chain linear minimum 7.5 x d 1992)
®
flexible minimum 6 x d Halogen-free Following DIN EN 60754
fixed minimum 4 x d
®
Temperature e-chain linear -25°C up to +80°C UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
flexible -40°C up to +80°C (following DIN EN 60811-504) service life calculator based on 2 billion test cycles per year"
fixed -50°C up to +80°C (following DIN EN 50305) UL/CSA AWM See data sheet for details  www.igus-asean.com/CF27D
v max. unsupported 10m/s
gliding 5m/s NFPA Following NFPA 79-2018, chapter 12.9
a max. 80m/s²
DNV Type Approval Certificate TAE00003XA
Travel distance Unsupported travels and up to 100m for gliding applications, Class 5
EAC Certificate No. RU C-DE.ME77.B.00863/20
Cable structure
Conductor Stranded conductor in especially bending-resistant version consisting of bare REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
copper wires (following DIN EN 60228).
Core insulation Mechanically high-quality, especially low-capacitance XLPE mixture. Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Core structure Power cores with control pair elements wound with elements for high tensile Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
stresses. CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
Core identification Power cores: Black cores with white numbers, one green-yellow core. DESINA According to VDW, DESINA standardisation
1. Core: U / L1 / C / L+ 2. Core: V / L2 3. Core: W / L3 / D / L-
1 control pair: Black cores with white numbers. CE Following 2014/35/EU
1. Control core: 4 2. Control core: 5
2 control pairs: Black cores with white numbers. UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
1. Control core: 5 2. Control core: 6 3. Control core: 7 4. Control core: 8
Star quad: yellow, black, red, white Guaranteed service life (details see page 28-29)
Element shield Extremely bending-resistant braiding made of tinned copper wires. Double strokes* 5 million 7.5 million 10 million

Temperature, R min. R min. R min.
®
Inner jacket TPE mixture adapted to suit the requirements in e-chains . from/to [°C] [factor x d] [factor x d] [factor x d]
-25/-15 10 11 12
Overall shield Extremely bending-resistant braiding made of tinned copper wires. -15/+70 7.5 8.5 9.5
Coverage linear approx. 70%, optical approx. 90% +70/+80 10 11 12
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
®
to suit the requirements in e-chains (following DIN EN 50363-10-2)
Colour: Pastel orange (similar to RAL 2003) Typical application areas
CFRIP ® Strip cables faster: a tear strip is moulded into the inner jacket z For heavy-duty applications, Class 6
Video  www.igus-asean.com/CFRIP z Unsupported travels and up to 100m for gliding applications, Class 5
Almost unlimited resistance to oil, Class 3
Electrical information
z
Example image Nominal voltage 600/1,000V (following DIN VDE 0298-3) z No torsion, Class 1
1,000V (following UL)
Indoor and outdoor applications, UV-resistant
z
4,000V (following DIN EN 50395)
Testing voltage
ASEAN2023 ASEAN2023 z Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick
handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications
296 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges 297
