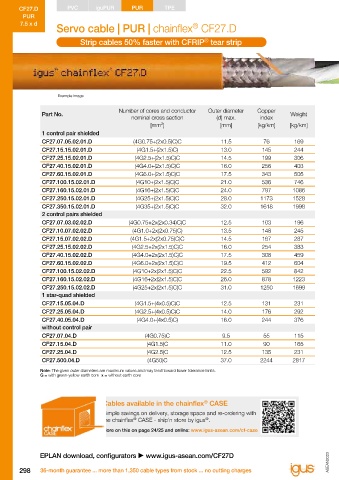

CF27.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF27.D
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Servo cable | PUR | chainflex CF27.D Class 6.5.3.1 Torsion none 1 2 3 4 ±360°

Strip cables 50% faster with CFRIP tear strip
®

Example image

Number of cores and conductor Outer diameter Copper Order example: CF27.40.15.02.01.D - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF27.D chainflex series .40 Code nominal cross section .10 Code nominal cross section
®
[mm²] [mm] [kg/km] [kg/km] .02 Identification pairs .01 Number of pairs
1 control pair shielded
CF27.07.05.02.01.D (4G0.75+(2x0.5)C)C 11.5 76 169 Order online  www.igus-asean.com/CF27D
CF27.15.15.02.01.D (4G1.5+(2x1.5)C) 13.0 145 244
CF27.25.15.02.01.D (4G2.5+(2x1.5)C)C 14.5 199 306 Delivery time 24hrs or today.
CF27.40.15.02.01.D (4G4.0+(2x1.5)C)C 16.0 256 403 Delivery time means time until goods are shipped.
CF27.60.15.02.01.D (4G6.0+(2x1.5)C)C 17.5 343 505
CF27.100.15.02.01.D (4G10+(2x1.5)C)C 21.0 536 746
CF27.160.15.02.01.D (4G16+(2x1.5)C)C 24.0 797 1086
CF27.250.15.02.01.D (4G25+(2x1.5)C)C 28.0 1173 1528
CF27.350.15.02.01.D (4G35+(2x1.5)C)C 32.0 1618 1998 Reduce cost, improve technology, now!
®
2 control pairs shielded Do the chainflex price check ...
www.igus-asean.com/cf-price-check
CF27.07.03.02.02.D (4G0.75+2x(2x0.34)C)C 12.5 103 196
CF27.10.07.02.02.D (4G1.0+2x(2x0.75)C) 13.5 148 245 … for example: reduce cost with CF21.UL ...
CF27.15.07.02.02.D (4G1.5+2x(2x0.75)C)C 14.5 167 287
CF27.25.15.02.02.D (4G2.5+2x(2x1.5)C)C 16.0 254 383
CF27.40.15.02.02.D (4G4.0+2x(2x1.5)C)C 17.5 308 459
CF27.60.15.02.02.D (4G6.0+2x(2x1.5)C)C 19.5 412 604
CF27.100.15.02.02.D (4G10+2x(2x1.5)C)C 22.5 592 842
CF27.160.15.02.02.D (4G16+2x(2x1.5)C)C 26.0 878 1223
CF27.250.15.02.02.D (4G25+2x(2x1.5)C)C 31.0 1250 1699
1 star-quad shielded
CF27.15.05.04.D (4G1.5+(4x0.5)C)C 12.5 131 231
CF27.25.05.04.D (4G2.5+(4x0.5)C)C 14.0 176 292
CF27.40.05.04.D (4G4.0+(4x0.5)C) 16.0 244 376
without control pair
CF27.07.04.D (4G0.75)C 9.5 55 115
CF27.15.04.D (4G1.5)C 11.0 90 165
CF27.25.04.D (4G2.5)C 12.5 135 231
CF27.500.04.D (4G50)C 37.0 2244 2817
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

®
Cables available in the chainflex CASE
Modular design, easy to retrofit: igus E4 e-chain and chainflex cables.
®
®
®
Simple savings on delivery, storage space and re-ordering with
the chainflex CASE - ship'n store by igus .
®
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case
EPLAN download, configurators  www.igus-asean.com/CF27D
