CF220.UL.H PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF220.UL.H
PVC New Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d

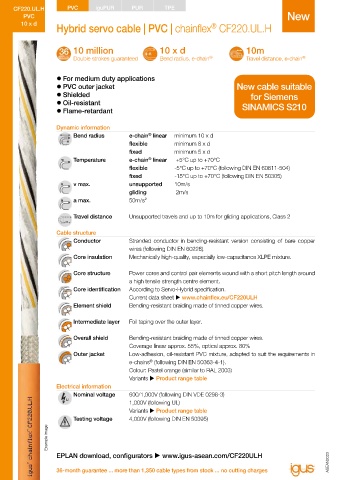

Hybrid servo cable | PVC | chainflex CF220.UL.H Class 4.2.2.1 Torsion none 1 2 3 4 ±360°

10 million 10 x d 10m Properties and approvals Medium
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 50363-4-1), Class 2
z For medium duty applications
z PVC outer jacket New cable suitable Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Shielded for Siemens
z Oil-resistant SINAMICS S210 Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Flame-retardant 1992)
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Dynamic information service life calculator based on 2 billion test cycles per year"
Bend radius e-chain linear minimum 10 x d UL/CSA AWM See data sheet for details  www.igus-asean.com/CF220ULH
®
flexible minimum 8 x d
fixed minimum 5 x d NFPA Following NFPA 79-2018, chapter 12.9
®
Temperature e-chain linear +5°C up to +70°C
flexible -5°C up to +70°C (following DIN EN 60811-504) EAC Certificate No. RU C-DE.ME77.B.00863/20
fixed -15°C up to +70°C (following DIN EN 50305)
v max. unsupported 10m/s REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
gliding 2m/s
a max. 50m/s² Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Travel distance Unsupported travels and up to 10m for gliding applications, Class 2 Cleanroom According to ISO Class 2. The outer jacket material of this series complies with
CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
Cable structure CE Following 2014/35/EU
Conductor Stranded conductor in bending-resistant version consisting of bare copper
wires (following DIN EN 60228). UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Core insulation Mechanically high-quality, especially low-capacitance XLPE mixture.
Info As hybrid cables are always designed for specific drive systems, additional
Core structure Power cores and control pair elements wound with a short pitch length around electrotechnical data may need to be considered. You will find more informa-
a high tensile strength centre element. tion in the latest data sheet for the cable series.
Core identification According to Servo-Hybrid specification.
Current data sheet  www.chainflex.eu/CF220ULH Guaranteed service life (details see page 28-29)
Element shield Bending-resistant braiding made of tinned copper wires. Double strokes* 5 million 7.5 million 10 million

Temperature, R min. R min. R min.
Intermediate layer Foil taping over the outer layer. from/to [°C] [factor x d] [factor x d] [factor x d]
+5/+15 12.5 13.5 14.5
Overall shield Bending-resistant braiding made of tinned copper wires. +15/+60 10 11 12
Coverage linear approx. 55%, optical approx. 80% +60/+70 12.5 13.5 14.5
Outer jacket Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
®
e-chains (following DIN EN 50363-4-1).
Colour: Pastel orange (similar to RAL 2003) Typical application areas
Variants  Product range table z For medium duty applications, Class 4
Electrical information z Unsupported travels and up to 10m for gliding applications, Class 2
Nominal voltage 600/1,000V (following DIN VDE 0298-3) z Light oil influence, Class 2
1,000V (following UL) z No torsion, Class 1
Variants  Product range table z Preferably indoor applications, but also outdoor ones at temperatures > 5 °C
Testing voltage 4,000V (following DIN EN 50395) z Wood/stone processing, packaging industry, feeding, handling, adjusting devices
Example image

EPLAN download, configurators  www.igus-asean.com/CF220ULH

302 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 303
®
