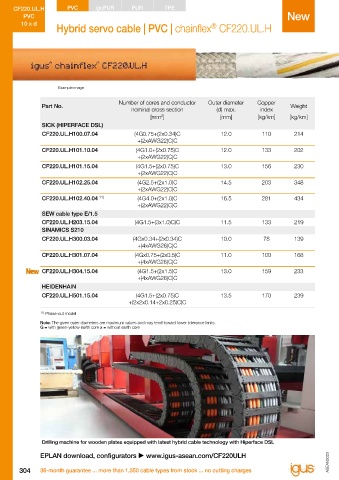

CF220.UL.H PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF220.UL.H
PVC New Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Hybrid servo cable | PVC | chainflex CF220.UL.H Class 4.2.2.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Hybrid technology Hybrid manufacturer
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
SICK (HIPERFACE DSL) SICK (HIPERFACE DSL)
CF220.UL.H100.07.04 (4G0.75+(2x0.34)C 12.0 110 214 CF220.UL.H100.07.04 SICK (HIPERFACE DSL) please see selection table on page 278
+(2xAWG22)C)C
CF220.UL.H101.10.04 (4G1.0+(2x0.75)C 12.0 133 202 CF220.UL.H101.10.04 SICK (HIPERFACE DSL) please see selection table on page 278
+(2xAWG22)C)C
CF220.UL.H101.15.04 (4G1.5+(2x0.75)C 13.0 156 230 CF220.UL.H101.15.04 SICK (HIPERFACE DSL) please see selection table on page 278
+(2xAWG22)C)C
CF220.UL.H102.25.04 (4G2.5+(2x1.0)C 14.5 203 348 CF220.UL.H102.25.04 SICK (HIPERFACE DSL) please see selection table on page 278
+(2xAWG22)C)C
CF220.UL.H102.40.04 11) (4G4.0+(2x1.0)C 16.5 281 434 CF220.UL.H102.40.04 11) SICK (HIPERFACE DSL) please see selection table on page 278
+(2xAWG22)C)C
SEW cable type E/1.5 SEW cable type E/1.5
CF220.UL.H203.15.04 (4G1.5+(3x1.0)C)C 11.5 133 219 CF220.UL.H203.15.04 SEW cable type E/1.5 SEW
SINAMICS S210 SINAMICS S210
CF220.UL.H300.03.04 (4Gx0.34+(2x0.34)C 10.0 78 139 CF220.UL.H300.03.04 SINAMICS S210 Siemens
+(4xAWG26)C)C
CF220.UL.H301.07.04 (4Gx0.75+(2x0.5)C 11.0 100 168 CF220.UL.H301.07.04 SINAMICS S210 Siemens
+(4xAWG26)C)C

CF220.UL.H304.15.04 (4G1.5+(2x1.5)C 13.0 159 233 CF220.UL.H304.15.04 SINAMICS S210 Siemens
+(4xAWG26)C)C
HEIDENHAIN HEIDENHAIN
CF220.UL.H501.15.04 (4G1.5+(2x0.75)C 13.5 170 239 CF220.UL.H501.15.04 HEIDENHAIN B&R
+(2x2x0.14+2x0.25)C)C

11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Cables available in the chainflex CASE
®
Simple savings on delivery, storage space and re-ordering with
the chainflex CASE - ship'n store by igus .
®
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

Drilling machine for wooden plates equipped with latest hybrid cable technology with Hiperface DSL

EPLAN download, configurators  www.igus-asean.com/CF220ULH
