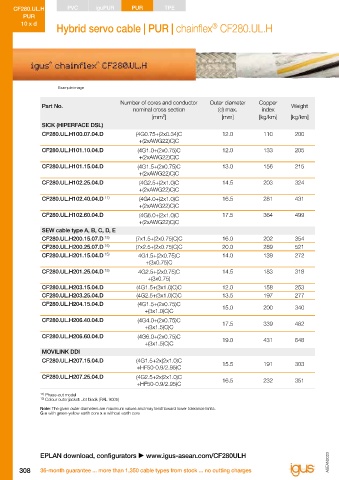

P. 314
CF280.UL.H PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF280.UL.H
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Hybrid servo cable | PUR | chainflex CF280.UL.H Class 4.2.3.1 Torsion none 1 2 3 4 ±360°
Example image
Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Hybrid technology Hybrid manufacturer
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
SICK (HIPERFACE DSL) SICK (HIPERFACE DSL)
CF280.UL.H100.07.04.D (4G0.75+(2x0.34)C 12.0 110 200 CF280.UL.H100.07.04.D SICK (HIPERFACE DSL) please see selection table on page 278
+(2xAWG22)C)C
CF280.UL.H101.10.04.D (4G1.0+(2x0.75)C 12.0 133 205 CF280.UL.H101.10.04.D SICK (HIPERFACE DSL) please see selection table on page 278
+(2xAWG22)C)C
CF280.UL.H101.15.04.D (4G1.5+(2x0.75)C 13.0 156 215 CF280.UL.H101.15.04.D SICK (HIPERFACE DSL) please see selection table on page 278
+(2xAWG22)C)C
CF280.UL.H102.25.04.D (4G2.5+(2x1.0)C 14.5 203 324 CF280.UL.H102.25.04.D SICK (HIPERFACE DSL) please see selection table on page 278
+(2xAWG22)C)C
CF280.UL.H102.40.04.D 11) (4G4.0+(2x1.0)C 16.5 281 431 CF280.UL.H102.40.04.D 11) SICK (HIPERFACE DSL) please see selection table on page 278
+(2xAWG22)C)C
CF280.UL.H102.60.04.D (4G6.0+(2x1.0)C 17.5 364 499 CF280.UL.H102.60.04.D SICK (HIPERFACE DSL) please see selection table on page 278
+(2xAWG22)C)C
SEW cable type A, B, C, D, E SEW cable type A, B, C, D, E
CF280.UL.H200.15.07.D 15) (7x1.5+(2x0.75)C)C 16.0 202 354 CF280.UL.H200.15.07.D 15) SEW cable type A/1.5 SEW
CF280.UL.H200.25.07.D 15) (7x2.5+(2x0.75)C)C 20.0 289 521 CF280.UL.H200.25.07.D 15) SEW cable type A/2.5 SEW
CF280.UL.H201.15.04.D 15) 4G1.5+(2x0.75)C 14.0 139 272 CF280.UL.H201.15.04.D 15) SEW cable type B/1.5 SEW
+(3x0.75)C
CF280.UL.H201.25.04.D 15) 4G2.5+(2x0.75)C 14.5 183 318 CF280.UL.H201.25.04.D 15) SEW cable type B/2.5 SEW
+(3x0.75)
CF280.UL.H203.15.04.D (4G1.5+(3x1.0)C)C 12.0 158 253 CF280.UL.H203.15.04.D SEW cable type E/1.5 SEW
CF280.UL.H203.25.04.D (4G2.5+(3x1.0)C)C 13.5 197 277 CF280.UL.H203.25.04.D SEW cable type E/2.5 SEW
CF280.UL.H204.15.04.D (4G1.5+(2x0.75)C CF280.UL.H204.15.04.D SEW cable type D/1.5 SEW
+(3x1.0)C)C
15.0 200 340
CF280.UL.H206.40.04.D (4G4.0+(2x0.75)C CF280.UL.H206.40.04.D SEW cable type D/4.0 SEW
+(3x1.5)C)C
17.5 339 482
CF280.UL.H206.60.04.D (4G6.0+(2x0.75)C CF280.UL.H206.60.04.D SEW cable type D/6.0 SEW
+(3x1.5)C)C
19.0 431 648
MOVILINK DDI MOVILINK DDI
CF280.UL.H207.15.04.D (4G1.5+2x(2x1.0)C CF280.UL.H207.15.04.D MOVILINK DDI SEW
15.5 191 303
+HF50-0.9/2.95)C
CF280.UL.H207.25.04.D (4G2.5+2x(2x1.0)C CF280.UL.H207.25.04.D MOVILINK DDI SEW
+HF50-0.9/2.95)C
16.5 232 351
11) Phase-out model
15) Colour outer jacket: Jet black (RAL 9005)
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Further cable types Page 310
EPLAN download, configurators www.igus-asean.com/CF280ULH
