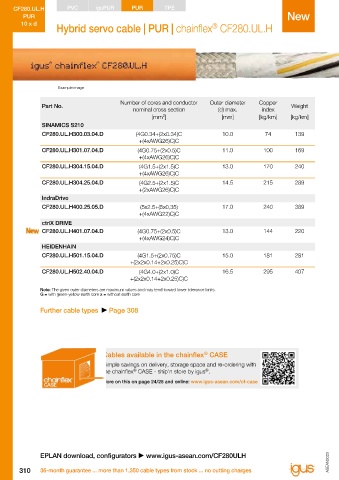

Page 316 - ASEAN Chainflex Catalogue 2023

CF280.UL.H PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF280.UL.H
PUR New Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Hybrid servo cable | PUR | chainflex CF280.UL.H Class 4.2.3.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Hybrid technology Hybrid manufacturer
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
SINAMICS S210 SINAMICS S210
CF280.UL.H300.03.04.D (4G0.34+(2x0.34)C 10.0 74 139 CF280.UL.H300.03.04.D SINAMICS S210 Siemens
+(4xAWG26)C)C

CF280.UL.H301.07.04.D (4G0.75+(2x0.5)C 11.0 100 169 CF280.UL.H301.07.04.D SINAMICS S210 Siemens

+(4xAWG26)C)C
CF280.UL.H304.15.04.D (4G1.5+(2x1.5)C 13.0 170 240 CF280.UL.H304.15.04.D SINAMICS S210 Siemens
+(4xAWG26)C)C

CF280.UL.H304.25.04.D (4G2.5+(2x1.5)C 14.5 215 289 CF280.UL.H304.25.04.D SINAMICS S210 Siemens
+(2xAWG26)C)C

IndraDrive IndraDrive
CF280.UL.H400.25.05.D (5x2.5+(5x0,35) 17.0 240 389 CF280.UL.H400.25.05.D IndraDrive Bosch Rexroth
+(4xAWG22)C)C

ctrlX DRIVE ctrlX DRIVE
CF280.UL.H401.07.04.D (4G0.75+(2x0.5)C 13.0 144 220 CF280.UL.H401.07.04.D ctrlX DRIVE Bosch Rexroth
+(4xAWG24)C)C
HEIDENHAIN HEIDENHAIN
CF280.UL.H501.15.04.D (4G1.5+(2x0.75)C 15.0 181 281 CF280.UL.H501.15.04.D HEIDENHAIN B&R
+(2x2x0.14+2x0.25)C)C

CF280.UL.H502.40.04.D (4G4.0+(2x1.0)C 16.5 295 407 CF280.UL.H502.40.04.D HEIDENHAIN B&R
+(2x2x0.14+2x0.25)C)C

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Further cable types Page 308 Order example: CF280.UL.H101.10.04 – to your desired length (0.5m steps)

CF280.UL.H chainflex series .101.10.04 Code hybrid bus element
®
Order online  www.igus-asean.com/ CF280ULH

®
Cables available in the chainflex CASE Delivery time 24hrs or today.
Simple savings on delivery, storage space and re-ordering with Delivery time means time until goods are shipped.
®
®
the chainflex CASE - ship'n store by igus .
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF280ULH

310 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 311
®
