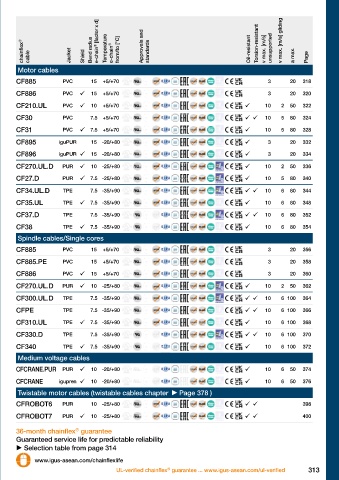

chainflex ® cable Jacket Shield Bend radius e-chain ® [factor x d] Temperature e-chain ® from/to [°C] Approvals and standards Oil-resistant Torsion-resistant v max. [m/s] unsupported v max. [m/s] gliding a max. Page

Motor cables
Motor cables

CF885 PVC 15 +5/+70 3 20 318

CF886 PVC  15 +5/+70 3 20 320
CF210.UL PVC  10 +5/+70  10 2 50 322

CF30 PVC 7.5 +5/+70   10 5 80 324

CF31 PVC  7.5 +5/+70  10 5 80 328
CF895 iguPUR 15 -20/+80  3 20 332

CF896 iguPUR  15 -20/+80  3 20 334

CF270.UL.D PUR  10 -25/+80  10 2 50 336
CF27.D PUR  7.5 -25/+80  10 5 80 340

CF34.UL.D TPE 7.5 -35/+90   10 6 80 344

CF35.UL TPE  7.5 -35/+90  10 6 80 348
CF37.D TPE 7.5 -35/+90   10 6 80 352

CF38 TPE  7.5 -35/+90  10 6 80 354
Spindle cables/Single cores

CF885 PVC 15 +5/+70 3 20 356
CF885.PE PVC 15 +5/+70 3 20 358

CF886 PVC  15 +5/+70 3 20 360

CF270.UL.D PUR  10 -25/+80  10 2 50 362
CF300.UL.D TPE 7.5 -35/+90   10 6 100 364

CFPE TPE 7.5 -35/+90   10 6 100 366

CF310.UL TPE  7.5 -35/+90  10 6 100 368
CF330.D TPE 7.5 -35/+90   10 6 100 370

CF340 TPE  7.5 -35/+90  10 6 100 372

Medium voltage cables
CFCRANE.PUR PUR  10 -20/+80  10 6 50 374

CFCRANE igupren  10 -20/+80  10 6 50 376
Twistable motor cables (twistable cables chapter Page 378 )

CFROBOT6 PUR 10 -25/+80   398
CFROBOT7 PUR  10 -25/+80   400

®
36-month chainflex guarantee
Guaranteed service life for predictable reliability
 Selection table from page 314
ASEAN2023 www.igus-asean.com/chainflexlife ® 313

UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified
