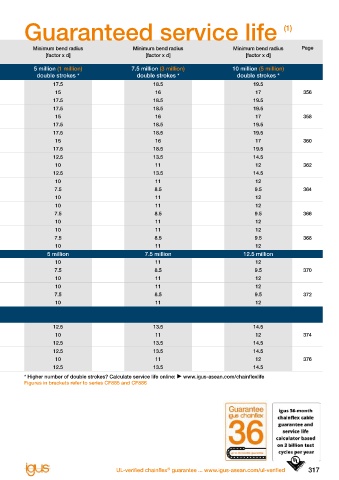

chainflex guarantee Guaranteed service life (1)
®

®
chainflex Temperature, v max. [m/s] a max. Travel Minimum bend radius Minimum bend radius Minimum bend radius Page
2
cable from/to [°C] [m/s ] distance [m] [factor x d] [factor x d] [factor x d]
unsupported gliding
Spindle cables/Single cores 5 million (1 million) 7.5 million (3 million) 10 million (5 million)
double strokes *
double strokes *
double strokes *
+5 / +15 17.5 18.5 19.5
CF885 +15 / +60 3 - 20 ≤ 10 15 16 17 356
+60 / +70 17.5 18.5 19.5
+5 / +15 17.5 18.5 19.5
CF885.PE +15 / +60 3 - 20 ≤ 10 15 16 17 358
+60 / +70 17.5 18.5 19.5
+5 / +15 17.5 18.5 19.5
CF886 +15 / +60 3 - 20 ≤ 10 15 16 17 360
+60 / +70 17.5 18.5 19.5
-25 / -15 12.5 13.5 14.5
CF270.UL.D -15 / +70 10 2 50 ≤ 10 10 11 12 362
+70 / +80 12.5 13.5 14.5
-35 / -25 10 11 12
CF300.UL.D -25 / +80 10 6 100 ≤ 400 7.5 8.5 9.5 364
+80 / +90 10 11 12
-35 / -25 10 11 12
CFPE -25 / +80 10 6 100 ≤ 400 7.5 8.5 9.5 366
+80 / +90 10 11 12
-35 / -25 10 11 12
CF310.UL -25 / +80 10 6 100 ≤ 400 7.5 8.5 9.5 368
+80 / +90 10 11 12
5 million 7.5 million 12.5 million
-35 / -25 10 11 12
CF330.D -25 / +80 10 6 100 ≤ 400 7.5 8.5 9.5 370
+80 / +90 10 11 12
-35 / -25 10 11 12
CF340 -25 / +80 10 6 100 ≤ 400 7.5 8.5 9.5 372
+80 / +90 10 11 12
Medium voltage cables

-20 / -10 12.5 13.5 14.5
CFCRANE.PUR -10 / +70 10 6 50 ≤ 400 10 11 12 374
+70 / +80 12.5 13.5 14.5
-20 / -10 12.5 13.5 14.5
CFCRANE -10 / +70 10 6 50 ≤ 400 10 11 12 376
+70 / +80 12.5 13.5 14.5
(1) Guaranteed service life for these series (details  see page 28-29) * Higher number of double strokes? Calculate service life online:  www.igus-asean.com/chainflexlife
Figures in brackets refer to series CF885 and CF886
