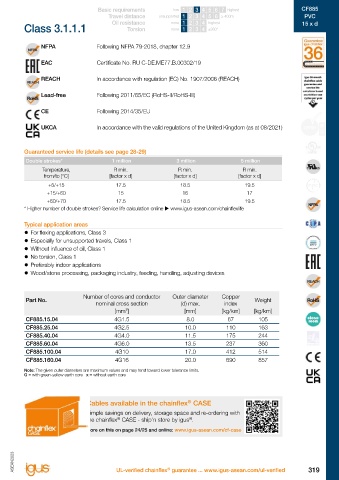

Page 325 - ASEAN Chainflex Catalogue 2023

CF885 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF885
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
15 x d ® Oil resistance none 1 2 3 4 highest 15 x d
Motor cable | PVC | chainflex CF885 Class 3.1.1.1 Torsion none 1 2 3 4 ±360°

5,000,000 15 x d 10m NFPA Following NFPA 79-2018, chapter 12.9
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
EAC Certificate No. RU C-DE.ME77.B.00302/19

z For flexing applications REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
z PVC outer jacket
z Flame-retardant Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

CE Following 2014/35/EU
Dynamic information
®
Bend radius e-chain linear minimum 15 x d UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
flexible minimum 12 x d
fixed minimum 8 x d
®
Temperature e-chain linear +5°C up to +70°C Guaranteed service life (details see page 28-29)
flexible -5°C up to +70°C (following DIN EN 60811-504) Double strokes* 1 million 3 million 5 million

fixed -15°C up to +70°C (following DIN EN 50305) Temperature, R min. R min. R min.
v max. unsupported 3m/s from/to [°C] [factor x d] [factor x d] [factor x d]
+5/+15 17.5 18.5 19.5
a max. 20m/s² +15/+60 15 16 17
+60/+70 17.5 18.5 19.5
Travel distance Unsupported travels up to 10m, Class 1 * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife

Cable structure Typical application areas
Conductor Conductor consisting of bare copper wires (according to DIN EN 60228). z For flexing applications, Class 3
z Especially for unsupported travels, Class 1
Core insulation Mechanically high-quality, especially low-capacitance TPE mixture. z Without influence of oil, Class 1
z No torsion, Class 1
Core structure Cores wound with an optimised pitch length. z Preferably indoor applications
z Wood/stone processing, packaging industry, feeding, handling, adjusting devices
Core identification Black cores with white numbers, one green-yellow core.
1. Core: U / L1 / C / L+
2. Core: V / L2 Part No. Number of cores and conductor Outer diameter Copper Weight
3. Core: W / L3 / D / L- nominal cross section (d) max. index
Outer jacket Low-adhesion PVC mixture, adapted to suit the requirements in e-chains . [mm²] [mm] [kg/km] [kg/km]
®
Colour: Pastel orange (similar to RAL 2003) CF885.15.04 4G1.5 8.0 67 105
CF885.25.04 4G2.5 10.0 110 163
Electrical information CF885.40.04 4G4.0 11.5 175 244
Nominal voltage 600/1,000V (following DIN VDE 0298-3) CF885.60.04 4G6.0 13.5 237 360
1,000V (following UL) CF885.100.04 4G10 17.0 412 514
Testing voltage 4,000V (following DIN EN 50395) CF885.160.04 4G16 20.0 690 857
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Properties and approvals
Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame

®
Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status Cables available in the chainflex CASE
1992) Simple savings on delivery, storage space and re-ordering with
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and the chainflex CASE - ship'n store by igus .
®
®
service life calculator based on 2 billion test cycles per year"
Example image UL/CSA AWM See data sheet for details www.igus-asean.com/CF885 More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF885

318 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 319
®
