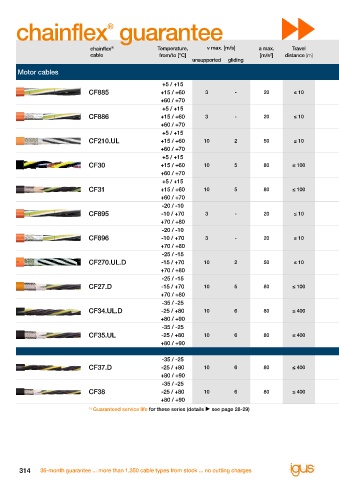

chainflex guarantee Guaranteed service life (1)
®

chainflex Temperature, v max. [m/s] a max. Travel Minimum bend radius Minimum bend radius Minimum bend radius Page
®
2
cable from/to [°C] [m/s ] distance [m] [factor x d] [factor x d] [factor x d]
unsupported gliding
Motor cables 5 million (1 million) 7.5 million (3 million) 10 million (5 million)
double strokes * double strokes * double strokes *
+5 / +15 17.5 18.5 19.5
CF885 +15 / +60 3 - 20 ≤ 10 15 16 17 318
+60 / +70 17.5 18.5 19.5
+5 / +15 17.5 18.5 19.5
CF886 +15 / +60 3 - 20 ≤ 10 15 16 17 320
+60 / +70 17.5 18.5 19.5
+5 / +15 12.5 13.5 14.5
CF210.UL +15 / +60 10 2 50 ≤ 10 10 11 12 322
+60 / +70 12.5 13.5 14.5
+5 / +15 10 11 12
CF30 +15 / +60 10 5 80 ≤ 100 7.5 8.5 9.5 324
+60 / +70 10 11 12
+5 / +15 10 11 12
CF31 +15 / +60 10 5 80 ≤ 100 7.5 8.5 9.5 328
+60 / +70 10 11 12
-20 / -10 17.5 18.5 19.5
CF895 -10 / +70 3 - 20 ≤ 10 15 16 17 332
+70 / +80 17.5 18.5 19.5
-20 / -10 17.5 18.5 19.5
CF896 -10 / +70 3 - 20 ≤ 10 15 16 17 334
+70 / +80 17.5 18.5 19.5
-25 / -15 12.5 13.5 14.5
CF270.UL.D -15 / +70 10 2 50 ≤ 10 10 11 12 336
+70 / +80 12.5 13.5 14.5
-25 / -15 10 11 12
CF27.D -15 / +70 10 5 80 ≤ 100 7.5 8.5 8.5 340
+70 / +80 10 11 12
-35 / -25 10 11 12
CF34.UL.D -25 / +80 10 6 80 ≤ 400 7.5 8.5 9.5 344
+80 / +90 10 11 12
-35 / -25 10 11 12
CF35.UL -25 / +80 10 6 80 ≤ 400 7.5 8.5 9.5 348
+80 / +90 10 11 12
5 million 7.5 million 12.5 million
-35 / -25 10 11 12
CF37.D -25 / +80 10 6 80 ≤ 400 7.5 8.5 9.5 352
+80 / +90 10 11 12
-35 / -25 10 11 12
CF38 -25 / +80 10 6 80 ≤ 400 7.5 8.5 9.5 354
+80 / +90 10 11 12
(1) Guaranteed service life for these series (details  see page 28-29) * Higher number of double strokes? Calculate service life online:  www.igus-asean.com/chainflexlife
Values in brackets apply to the CF885/CF886 and CF895/CF896 series
