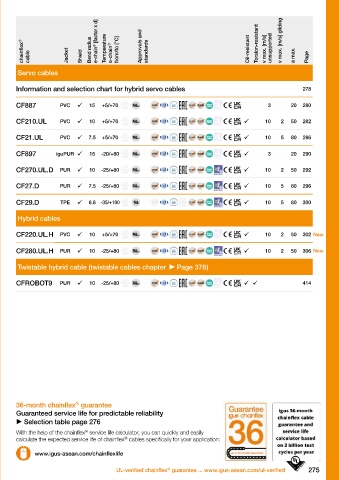

chainflex ® cable Jacket Shield Bend radius e-chain ® [factor x d] Temperature e-chain ® from/to [°C] Approvals and standards Oil-resistant Torsion-resistant v max. [m/s] unsupported v max. [m/s] gliding a max. Page

Servo cables
Servo cables

Information and selection chart for hybrid servo cables 278

CF887 PVC  15 +5/+70 3 20 280

CF210.UL PVC  10 +5/+70  10 2 50 282

CF21.UL PVC  7.5 +5/+70  10 5 80 286

CF897 iguPUR  15 -20/+80  3 20 290

CF270.UL.D PUR  10 -25/+80  10 2 50 292

CF27.D PUR  7.5 -25/+80  10 5 80 296

CF29.D TPE  6.8 -35/+100  10 5 80 300

Hybrid cables

CF220.UL.H PVC  10 +5/+70  10 2 50 302 New

CF280.UL.H PUR  10 -25/+80  10 2 50 306 New

Twistable hybrid cable (twistable cables chapter Page 378 )

CFROBOT9 PUR  10 -25/+80   414
Hybrid cables

36-month chainflex guarantee
®
Guaranteed service life for predictable reliability
 Selection table page 276
®
With the help of the chainflex service life calculator, you can quickly and easily
calculate the expected service life of chainflex cables specifically for your application:
®
ASEAN2023 www.igus-asean.com/chainflexlife ® 275

UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified
