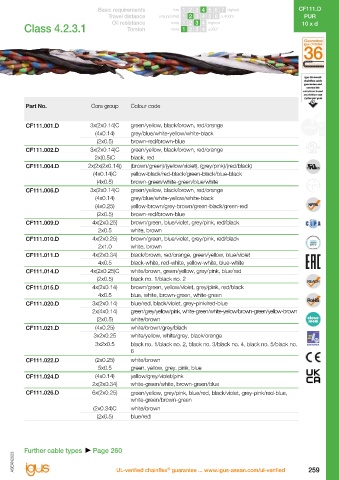

CF111.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF111.D
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Measuring system cable | PUR | chainflex CF111.D Class 4.2.3.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CF111.001.D (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.5 64 104 CF111.001.D 3x(2x0.14)C green/yellow, black/brown, red/orange
(4x0.14) grey/blue/white-yellow/white-black
(2x0.5) brown-red/brown-blue
CF111.002.D (3x(2x0.14)C+2x(0.5)C)C 9.5 66 109 CF111.002.D 3x(2x0.14)C green/yellow, black/brown, red/orange
2x(0.5)C black, red
CF111.004.D (2x(2x(2x0.14))+(4x0.14)C 10.5 70 116 CF111.004.D 2x(2x(2x0.14)) (brown/green)/(yellow/violet), (grey/pink)/(red/black)
+(4x0.5))C (4x0.14)C yellow-black/red-black/green-black/blue-black
(4x0.5) brown-green/white-green/blue/white
CF111.006.D (3x(2x0.14)C+(4x0.14)+(4x0.25) 10.0 76 122 CF111.006.D 3x(2x0.14)C green/yellow, black/brown, red/orange
+(2x0.5))C (4x0.14) grey/blue/white-yellow/white-black
(4x0.25) yellow-brown/grey-brown/green-black/green-red
(2x0.5) brown-red/brown-blue
CF111.009.D (4x(2x0.25)+2x0.5)C 8.0 49 79 CF111.009.D 4x(2x0.25) brown/green, blue/violet, grey/pink, red/black
2x0.5 white, brown
CF111.010.D (4x(2x0.25)+2x1.0)C 8.5 61 94 CF111.010.D 4x(2x0.25) brown/green, blue/violet, grey/pink, red/black
2x1.0 white, brown
CF111.011.D (4x(2x0.34)+4x0.5)C 9.5 72 115 CF111.011.D 4x(2x0.34) black/brown, red/orange, green/yellow, blue/violet
4x0.5 black-white, red-white, yellow-white, blue-white
CF111.014.D (4x(2x0.25)C+(2x0.5))C 10.5 77 124 CF111.014.D 4x(2x0.25)C white/brown, green/yellow, grey/pink, blue/red
(2x0.5) black no. 1/black no. 2
CF111.015.D (4x(2x0.14)+4x0.5)C 8.5 54 87 CF111.015.D 4x(2x0.14) brown/green, yellow/violet, grey/pink, red/black
4x0.5 blue, white, brown-green, white-green
CF111.020.D (3x(2x0.14)+2x(4x0.14)+(2x0.5))C 8.5 52 87 CF111.020.D 3x(2x0.14) blue/red, black/violet, grey-pink/red-blue
2x(4x0.14) green/grey/yellow/pink, white-green/white-yellow/brown-green/yellow-brown
(2x0.5) white/brown
CF111.021.D ((4x0.25)+3x(2x0.25+2x0.5))C 9.5 80 117 CF111.021.D (4x0.25) white/brown/grey/black
3x2x0.25 white/yellow, white/grey, black/orange
3x2x0.5 black no. 1/black no. 2, black no. 3/black no. 4, black no. 5/black no.
6
CF111.022.D ((2x0.25)+5x0.5)C 7.0 46 75 CF111.022.D (2x0.25) white/brown
5x0.5 green, yellow, grey, pink, blue
CF111.024.D ((4x0.14)+2x(2x0.34))C 7.0 36 61 CF111.024.D (4x0.14) yellow/grey/violet/pink
2x(2x0.34) white-green/white, brown-green/blue
CF111.026.D (6x(2x0.25)+(2x0.34)C+(2x0.5))C 10.5 74 119 CF111.026.D 6x(2x0.25) green/yellow, grey/pink, blue/red, black/violet, grey-pink/red-blue,
white-green/brown-green
(2x0.34)C white/brown
(2x0.5) blue/red

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Further cable types Page 260
EPLAN download, configurators  www.igus-asean.com/CF111D
