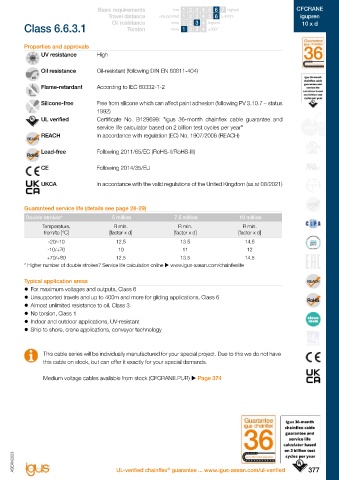

CFCRANE PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFCRANE
igupren Travel distance unsupported 1 2 3 4 5 6 ≥ 400m igupren
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Medium voltage cable | igupren | chainflex CFCRANE Class 6.6.3.1 Torsion none 1 2 3 4 ±360°

10 million 10 x d 400m Properties and approvals High
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 60811-404)
z For maximum voltages and outputs z Flame-retardant
z igupren outer jacket Flame-retardant According to IEC 60332-1-2
z Shielded
z Oil-resistant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Dynamic information service life calculator based on 2 billion test cycles per year"
Bend radius e-chain linear minimum 10 x d REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
®
flexible minimum 8 x d
fixed minimum 5 x d Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
®
Temperature e-chain linear -20°C up to +80°C
flexible -25°C up to +80°C (following DIN EN 60811-504) CE Following 2014/35/EU
fixed -30°C up to +80°C (following DIN EN 50305)
v max. unsupported 10m/s UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
gliding 6m/s
a max. 50m/s²
Guaranteed service life (details see page 28-29)
Travel distance Unsupported travels and up to 400m and more for gliding applications, Class 6 Double strokes* 5 million 7.5 million 10 million

Temperature, R min. R min. R min.
Cable structure from/to [°C] [factor x d] [factor x d] [factor x d]
Conductor Highly-flexible cable consisting of tinned copper wires (following DIN EN -20/-10 12.5 13.5 14.5
60228). -10/+70 10 11 12
Core insulation Inner and outer semiconducting layer made of conductive rubber. Insulating +70/+80 12.5 13.5 14.5
sheath made of highly-quality, heat-resistant and ozone-proof ethylene propyl- * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
ene rubber (EPR).
Overall shield Extremely bending-resistant, tinned copper shield. Typical application areas
Coverage approx. 95% optical z For maximum voltages and outputs, Class 6
Outer jacket Low-adhesion iguprene mixture, especially abrasion resistant, adapted to suit z Unsupported travels and up to 400m and more for gliding applications, Class 6
®
the requirements in e-chains (following VDE 0207, Part 21). z Almost unlimited resistance to oil, Class 3
Colour: Red z No torsion, Class 1
Electrical information z Indoor and outdoor applications, UV-resistant
Nominal voltage 6/10kV (following DIN VDE 0250), other voltages upon request. z Ship to shore, crane applications, conveyor technology

Testing voltage 17kV (following DIN VDE 0250, Part 813)
This cable series will be individually manufactured for your special project. Due to this we do not have
this cable on stock, but can offer it exactly for your special demands.

Medium voltage cables available from stock (CFCRANE.PUR)  Page 374

Example image

EPLAN download, configurators  www.igus-asean.com/CFCRANE
