CF340 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF340
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d

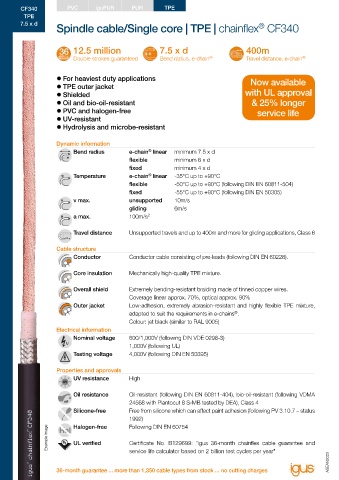

Spindle cable/Single core | TPE | chainflex CF340 Class 7.6.4.1 Torsion none 1 2 3 4 ±360°

12.5 million 7.5 x d 400m UL AWM See data sheet for details  www.igus-asean.com/CF340
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
EAC Certificate No. RU C-DE.ME77.B.00863/20

z For heaviest duty applications Now available REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
z TPE outer jacket
z Shielded with UL approval Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
z Oil and bio-oil-resistant & 25% longer
z PVC and halogen-free service life Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
z UV-resistant CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
z Hydrolysis and microbe-resistant CE Following 2014/35/EU

Dynamic information UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
®
Bend radius e-chain linear minimum 7.5 x d
flexible minimum 6 x d
fixed minimum 4 x d Guaranteed service life (details see page 28-29)
Temperature e-chain linear -35°C up to +90°C Double strokes* 5 million 7.5 million 12.5 million
®

flexible -50°C up to +90°C (following DIN EN 60811-504) Temperature, R min. R min. R min.
fixed -55°C up to +90°C (following DIN EN 50305) from/to [°C] [factor x d] [factor x d] [factor x d]
v max. unsupported 10m/s -35/-25 10 11 12
gliding 6m/s -25/+80 7.5 8.5 9.5
a max. 100m/s² +80/+90 10 11 12
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Travel distance Unsupported travels and up to 400m and more for gliding applications, Class 6
Typical application areas
Cable structure z For heavy-duty applications, Class 7
Conductor Conductor cable consisting of pre-leads (following DIN EN 60228). z Unsupported travels and up to 400m and more for gliding applications, Class 6
z Almost unlimited resistance to oil, also with bio-oils, Class 4
Core insulation Mechanically high-quality TPE mixture. z No torsion, Class 1
z Indoor and outdoor applications, UV-resistant
Overall shield Extremely bending-resistant braiding made of tinned copper wires. z Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick
Coverage linear approx. 70%, optical approx. 90% handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture,
®
adapted to suit the requirements in e-chains .
Colour: jet black (similar to RAL 9005) Part No. Number of cores and conductor Outer diameter Copper Weight
Electrical information nominal cross section (d) max. index
Nominal voltage 600/1,000V (following DIN VDE 0298-3) [mm²] [mm] [kg/km] [kg/km]
1,000V (following UL) CF340.40.01 (1x4.0)C 6.5 57 73
Testing voltage 4,000V (following DIN EN 50395) CF340.160.01 (1x16)C 10.0 184 215
CF340.250.01 (1x25)C 12.0 280 319
Properties and approvals CF340.350.01 (1x35)C 13.0 395 433
UV resistance High CF340.500.01 (1x50)C 15.0 536 574
CF340.700.01 (1x70)C 17.5 779 832

Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA CF340.950.01 (1x95)C 21.0 1015 1093
24568 with Plantocut 8 S-MB tested by DEA), Class 4 CF340.1200.01 (1x120)C 22.0 1270 1341
Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status CF340.1500.01 (1x150)C 24.5 1592 1642
1992) CF340.1850.01 (1x185)C 27.5 2066 2157
CF340.2400.01
2731
(1x240)C
30.5
2566
Following DIN EN 60754
Example image UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Halogen-free
G = with green-yellow earth core x = without earth core
service life calculator based on 2 billion test cycles per year"
ASEAN2023 ASEAN2023
372 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 373
®
