CFCRANE PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFCRANE
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d

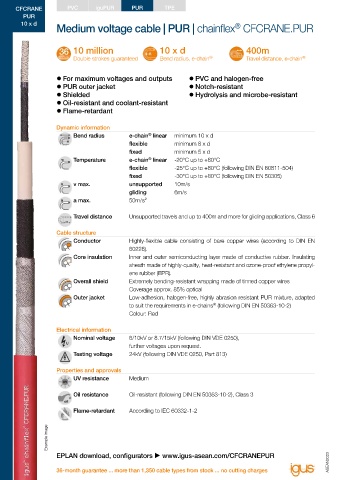

Medium voltage cable | PUR | chainflex CFCRANE.PUR Class 6.6.3.1 Torsion none 1 2 3 4 ±360°

10 million 10 x d 400m Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Halogen-free Following DIN EN 60754

z For maximum voltages and outputs z PVC and halogen-free UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z PUR outer jacket z Notch-resistant service life calculator based on 2 billion test cycles per year"
z Shielded z Hydrolysis and microbe-resistant REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
z Oil-resistant and coolant-resistant
z Flame-retardant Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Dynamic information CE Following 2014/35/EU
®
Bend radius e-chain linear minimum 10 x d
flexible minimum 8 x d UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
fixed minimum 5 x d
Temperature e-chain linear -20°C up to +80°C
®
flexible -25°C up to +80°C (following DIN EN 60811-504)
fixed -30°C up to +80°C (following DIN EN 50305) Guaranteed service life (details see page 28-29)
v max. unsupported 10m/s Double strokes* 5 million 7.5 million 10 million

gliding 6m/s Temperature, R min. R min. R min.
a max. 50m/s² from/to [°C] [factor x d] [factor x d] [factor x d]
-20/-10 12.5 13.5 14.5
Travel distance Unsupported travels and up to 400m and more for gliding applications, Class 6 -10/+70 10 11 12
+70/+80 12.5 13.5 14.5
Cable structure * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Conductor Highly-flexible cable consisting of bare copper wires (according to DIN EN
60228). Typical application areas
Core insulation Inner and outer semiconducting layer made of conductive rubber. Insulating z For maximum voltages and outputs, Class 6
sheath made of highly-quality, heat-resistant and ozone-proof ethylene propyl- z Unsupported travels and up to 400m and more for gliding applications, Class 6
ene rubber (EPR). z Almost unlimited resistance to oil, Class 3
Overall shield Extremely bending-resistant wrapping made of tinned copper wires z No torsion, Class 1
Coverage approx. 85% optical z Indoor and outdoor applications, UV-resistant
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted z Ship to shore, crane applications, conveyor technology
®
to suit the requirements in e-chains (following DIN EN 50363-10-2)
Colour: Red
Number of cores and conductor Outer diameter Copper
Electrical information Part No. nominal cross section (d) max. index Weight
Nominal voltage 6/10kV or 8.7/15kV (following DIN VDE 0250),
further voltages upon request. [mm²] [mm] [kg/km] [kg/km]
Testing voltage 24kV (following DIN VDE 0250, Part 813) CFCRANE.PUR.350.01.6/10kV (1x35/16)C 26.0 568 852
CFCRANE.PUR.500.01.6/10kV (1x50/16)C 27.0 722 1025
Properties and approvals CFCRANE.PUR.700.01.6/10kV (1x70/16)C 29.0 941 1249
UV resistance Medium CFCRANE.PUR.950.01.6/10kV (1x95/16)C 31.0 1166 1523
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3

Flame-retardant According to IEC 60332-1-2

Example image

EPLAN download, configurators  www.igus-asean.com/CFCRANEPUR
