CF330.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF330.D
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d

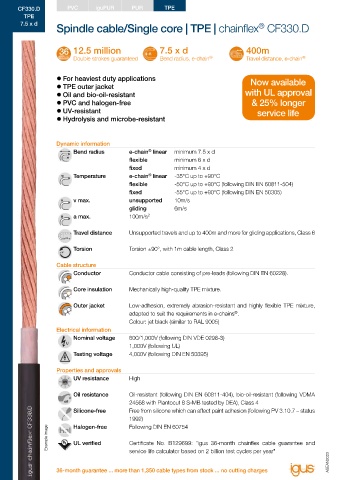

Spindle cable/Single core | TPE | chainflex CF330.D Class 7.6.4.2 Torsion none 1 2 3 4 ±360°

12.5 million 7.5 x d 400m UL AWM See data sheet for details  www.igus-asean.com/CF330D
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
EAC Certificate No. RU C-DE.ME77.B.00863/20

z For heaviest duty applications Now available REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
z TPE outer jacket
z Oil and bio-oil-resistant with UL approval Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
z PVC and halogen-free & 25% longer
z UV-resistant service life Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
z Hydrolysis and microbe-resistant CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
DESINA According to VDW, DESINA standardisation

Dynamic information CE Following 2014/35/EU
Bend radius e-chain linear minimum 7.5 x d
®
flexible minimum 6 x d UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
fixed minimum 4 x d
Temperature e-chain linear -35°C up to +90°C
®
flexible -50°C up to +90°C (following DIN EN 60811-504) Guaranteed service life (details see page 28-29)
fixed -55°C up to +90°C (following DIN EN 50305) Double strokes* 5 million 7.5 million 12.5 million

v max. unsupported 10m/s Temperature, R min. R min. R min.
gliding 6m/s from/to [°C] [factor x d] [factor x d] [factor x d]
a max. 100m/s² -35/-25 10 11 12
-25/+80 7.5 8.5 9.5
Travel distance Unsupported travels and up to 400m and more for gliding applications, Class 6 +80/+90 10 11 12
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Torsion Torsion ±90°, with 1m cable length, Class 2
Typical application areas
Cable structure z For heavy-duty applications, Class 7
Conductor Conductor cable consisting of pre-leads (following DIN EN 60228). z Unsupported travels and up to 400m and more for gliding applications, Class 6
z Almost unlimited resistance to oil, also with bio-oils, Class 4
Core insulation Mechanically high-quality TPE mixture. z Torsion ±90°, with 1m cable length, Class 2
z Indoor and outdoor applications, UV-resistant
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, z Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick
adapted to suit the requirements in e-chains . handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications
®
Colour: jet black (similar to RAL 9005)
Electrical information
Nominal voltage 600/1,000V (following DIN VDE 0298-3) Part No. Number of cores and conductor Outer diameter Copper Weight
1,000V (following UL) nominal cross section (d) max. index
Testing voltage 4,000V (following DIN EN 50395) [mm²] [mm] [kg/km] [kg/km]
CF330.60.01.D 1x6.0 7.0 61 77
Properties and approvals CF330.100.01.D 1x10 7.5 100 119
UV resistance High CF330.160.01.D 1x16 9.5 159 181
CF330.250.01.D 1x25 11.5 248 284

Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA CF330.350.01.D 1x35 12.5 347 385
24568 with Plantocut 8 S-MB tested by DEA), Class 4 CF330.500.01.D 1x50 14.5 495 534
Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status CF330.700.01.D 1x70 16.5 710 754
1x95
936
1992) CF330.950.01.D 1x120 20.0 1184 1015
21.5
CF330.1200.01.D
1265
Following DIN EN 60754
Halogen-free
Example image UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and CF330.1500.01.D 1x150 23.5 1469 1548
26.5
1928
2016
1x185
CF330.1850.01.D
service life calculator based on 2 billion test cycles per year"
ASEAN2023 ASEAN2023 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
