CFPE PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFPE
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d

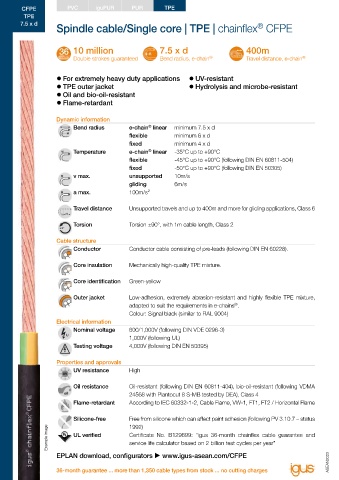

Spindle cable/Single core | TPE | chainflex CFPE Class 6.6.4.2 Torsion none 1 2 3 4 ±360°

10 million 7.5 x d 400m UL/CSA AWM See data sheet for details www.igus-asean.com/CFPEE
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
NFPA Following NFPA 79-2018, chapter 12.9

z For extremely heavy duty applications z UV-resistant DNV Type Approval Certificate TAE00003XC
z TPE outer jacket z Hydrolysis and microbe-resistant
z Oil and bio-oil-resistant EAC Certificate No. RU C-DE.ME77.B.00863/20
z Flame-retardant
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
Dynamic information
Bend radius e-chain linear minimum 7.5 x d Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
®
flexible minimum 6 x d
fixed minimum 4 x d Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Temperature e-chain linear -35°C up to +90°C CF34.UL.25.04.D - tested by IPA according to standard DIN EN ISO 14644-1
®
flexible -45°C up to +90°C (following DIN EN 60811-504) CE Following 2014/35/EU
fixed -50°C up to +90°C (following DIN EN 50305)
v max. unsupported 10m/s UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
gliding 6m/s
a max. 100m/s²
Guaranteed service life (details see page 28-29)
Travel distance Unsupported travels and up to 400m and more for gliding applications, Class 6 Double strokes* 5 million 7.5 million 10 million

Temperature, R min. R min. R min.
Torsion Torsion ±90°, with 1m cable length, Class 2 from/to [°C] [factor x d] [factor x d] [factor x d]
-35/-25 10 11 12
Cable structure -25/+80 7.5 8.5 9.5
Conductor Conductor cable consisting of pre-leads (following DIN EN 60228). +80/+90 10 11 12
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Core insulation Mechanically high-quality TPE mixture.
Typical application areas
Core identification Green-yellow z For heavy-duty applications, Class 6
z Unsupported travels and up to 400m and more for gliding applications, Class 6
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, z Almost unlimited resistance to oil, also with bio-oils, Class 4
®
adapted to suit the requirements in e-chains . z Torsion ±90°, with 1m cable length, Class 2
Colour: Signal black (similar to RAL 9004) z Indoor and outdoor applications, UV-resistant
Electrical information z Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick
Nominal voltage 600/1,000V (following DIN VDE 0298-3) handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications
1,000V (following UL)
Testing voltage 4,000V (following DIN EN 50395)
Number of cores and conductor Outer diameter Copper
Part No. Weight
Properties and approvals nominal cross section (d) max. index
UV resistance High [mm²] [mm] [kg/km] [kg/km]
CFPE.15.01 1G1.5 4.5 16 31
Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA CFPE.25.01 1G2.5 5.5 25 42
24568 with Plantocut 8 S-MB tested by DEA), Class 4 CFPE.40.01 1G4.0 6.0 41 59
Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame CFPE.60.01 1G6.0 7.0 61 83
CFPE.100.01 1G10 7.5 100 124
9.5
Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status CFPE.160.01 1G16 11.5 159 195
1G25
248
294
CFPE.250.01
1992)
Example image UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and CFPE.350.01 1G35 12.5 347 395
14.5
551
495
1G50
CFPE.500.01
service life calculator based on 2 billion test cycles per year"
813
EPLAN download, configurators  www.igus-asean.com/CFPE CFPE.700.01 1G70 16.5 725 1080
936
CFPE.950.01
20.0
1G95
366 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. 367
G = with green-yellow earth core x = without earth core
