CFROBOT6 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFROBOT6
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
±180°/m ® Oil resistance none 1 2 3 4 highest ±180°/m

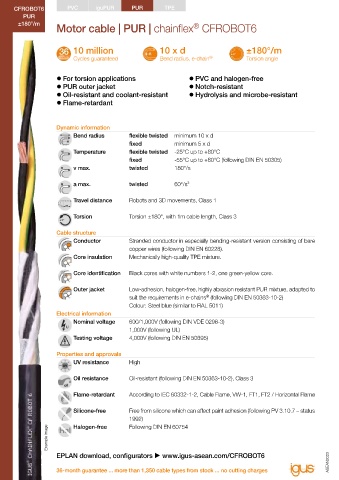

Motor cable | PUR | chainflex CFROBOT6 Class 6.1.3.3 Torsion none 1 2 3 4 ±360°

10 million 10 x d ±180°/m UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
Cycles guaranteed Bend radius, e-chain ® Torsion angle
UL/CSA AWM See data sheet for details  www.igus-asean.com/CFROBOT6

z For torsion applications z PVC and halogen-free NFPA Following NFPA 79-2018, chapter 12.9
z PUR outer jacket z Notch-resistant
z Oil-resistant and coolant-resistant z Hydrolysis and microbe-resistant EAC Certificate No. RU C-DE.ME77.B.00863/20
z Flame-retardant
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

Dynamic information Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Bend radius flexible twisted minimum 10 x d
fixed minimum 5 x d Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Temperature flexible twisted -25°C up to +80°C CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
fixed -55°C up to +80°C (following DIN EN 50305) CE Following 2014/35/EU
v max. twisted 180°/s
UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
a max. twisted 60°/s²

Travel distance Robots and 3D movements, Class 1 Guaranteed service life (details see page 28-29)
Cycles* 5 million 7.5 million 10 million
Torsion Torsion ±180°, with 1m cable length, Class 3 Temperature, Torsion max. Torsion max. Torsion max.
from/to [°C] [°/m] [°/m] [°/m]
Cable structure -25/-15 ±150 ±90 ±30
Conductor Stranded conductor in especially bending-resistant version consisting of bare -15/+70 ±180 ±120 ±60
copper wires (following DIN EN 60228). +70/+80 ±150 ±90 ±30
Core insulation Mechanically high-quality TPE mixture. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife

Core identification Black cores with white numbers 1-2, one green-yellow core. Typical application areas
z For heaviest duty applications with torsion movements, Class 6
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted to z Especially for robots and 3D movements, Class 1
suit the requirements in e-chains (following DIN EN 50363-10-2) z Almost unlimited resistance to oil, Class 3
®
Colour: Steel blue (similar to RAL 5011) z Torsion ±180°, with 1m cable length, Class 3
Electrical information z Indoor and outdoor applications, UV-resistant
Nominal voltage 600/1,000V (following DIN VDE 0298-3) z Robots, handling, spindle drives
1,000V (following UL)
Testing voltage 4,000V (following DIN EN 50395)

Properties and approvals Part No. Number of cores and conductor Outer diameter Copper Weight
UV resistance High nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3 CFROBOT6.160.03 11) 3G16 18.0 475 578
CFROBOT6.250.03 11) 3G25 22.0 737 896

Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame 11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status G = with green-yellow earth core x = without earth core
1992)
Following DIN EN 60754
Example image
Halogen-free

EPLAN download, configurators  www.igus-asean.com/CFROBOT6
