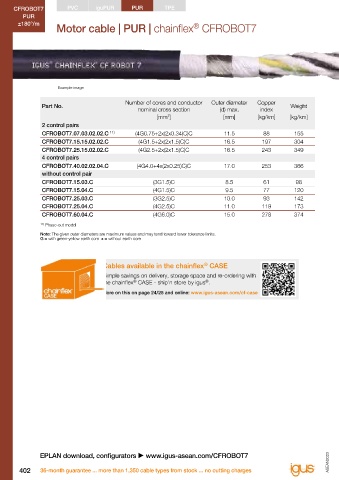

Page 408 - ASEAN Chainflex Catalogue 2023

CFROBOT7 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFROBOT7
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
±180°/m ® Oil resistance none 1 2 3 4 highest ±180°/m
Motor cable | PUR | chainflex CFROBOT7 Class 6.1.3.3 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Order example: CFROBOT7.15.03.C – to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CFROBOT7 chainflex series .15 Code nominal cross section .03 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
2 control pairs Order online  www.igus-asean.com/CFROBOT7
CFROBOT7.07.03.02.02.C 11) (4G0.75+2x(2x0.34)C)C 11.5 88 155
CFROBOT7.15.15.02.02.C (4G1.5+2x(2x1.5)C)C 16.5 197 304 Delivery time 24hrs or today.
CFROBOT7.25.15.02.02.C (4G2.5+2x(2x1.5)C)C 16.5 243 349 Delivery time means time until goods are shipped.
4 control pairs
CFROBOT7.40.02.02.04.C (4G4.0+4x(2x0.25)C)C 17.0 253 366
without control pair
CFROBOT7.15.03.C (3G1.5)C 8.5 61 98
CFROBOT7.15.04.C (4G1.5)C 9.5 77 120
CFROBOT7.25.03.C (3G2.5)C 10.0 93 142
CFROBOT7.25.04.C (4G2.5)C 11.0 119 173
CFROBOT7.60.04.C (4G6.0)C 15.0 278 374

11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Cables available in the chainflex CASE
®
Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CFROBOT7
