CFROBOT8 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFROBOT8
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
±180°/m ® Oil resistance none 1 2 3 4 highest ±180°/m

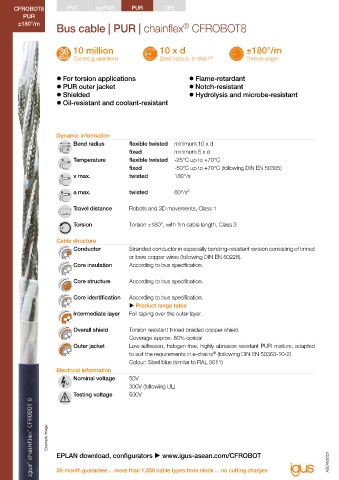

Bus cable | PUR | chainflex CFROBOT8 Class 6.1.3.3 Torsion none 1 2 3 4 ±360°

10 million 10 x d ±180°/m Properties and approvals High
UV resistance
Cycles guaranteed Bend radius, e-chain ® Torsion angle

Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z For torsion applications z Flame-retardant
z PUR outer jacket z Notch-resistant Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Shielded z Hydrolysis and microbe-resistant
z Oil-resistant and coolant-resistant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
Dynamic information UL/CSA AWM See data sheet for details  www.igus-asean.com/CFROBOT8
Bend radius flexible twisted minimum 10 x d
fixed minimum 5 x d EAC Certificate No. RU C-DE.ME77.B.00295/19
Temperature flexible twisted -25°C up to +70°C
fixed -50°C up to +70°C (following DIN EN 50305) REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
v max. twisted 180°/s
Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
a max. twisted 60°/s²
Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Travel distance Robots and 3D movements, Class 1 CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
CE Following 2014/35/EU
Torsion Torsion ±180°, with 1m cable length, Class 3
UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Cable structure
Conductor Stranded conductor in especially bending-resistant version consisting of tinned
or bare copper wires (following DIN EN 60228). Guaranteed service life (details see page 28-29)
Core insulation According to bus specification. Cycles* 5 million 7.5 million 10 million

Temperature, Torsion max. Torsion max. Torsion max.
Core structure According to bus specification. from/to [°C] [°/m] [°/m] [°/m]
-25/-15 ±150 ±90 ±30
Core identification According to bus specification. -15/+60 ±180 ±120 ±60
 Product range table +60/+70 ±150 ±90 ±30
Intermediate layer Foil taping over the outer layer. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife

Overall shield Torsion resistant tinned braided copper shield. Typical application areas
Coverage approx. 80% optical z For heaviest duty applications with torsion movements, Class 6
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted z Especially for robots and 3D movements, Class 1
®
to suit the requirements in e-chains (following DIN EN 50363-10-2) z Almost unlimited resistance to oil, Class 3
Colour: Steel blue (similar to RAL 5011) z Torsion ±180°, with 1m cable length, Class 3
Electrical information z Indoor and outdoor applications, UV-resistant
Nominal voltage 50V z Robots, handling, spindle drives
300V (following UL)
Testing voltage 500V

Example image

EPLAN download, configurators  www.igus-asean.com/CFROBOT
