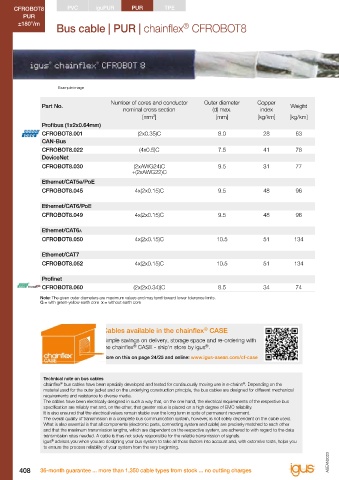

Page 414 - ASEAN Chainflex Catalogue 2023

CFROBOT8 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFROBOT8
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
±180°/m ® Oil resistance none 1 2 3 4 highest ±180°/m
Bus cable | PUR | chainflex CFROBOT8 Class 6.1.3.3 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Characteristic wave
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index impedance approx.
[mm²] [mm] [kg/km] [kg/km] [Ω]
Profibus (1x2x0.64mm) Profibus (1x2x0.64mm)
CFROBOT8.001 (2x0.35)C 8.0 28 63 CFROBOT8.001 150 (2x0.35)C red, green
CAN-Bus CAN-Bus
CFROBOT8.022 (4x0.5)C 7.5 41 78 CFROBOT8.022 120 (4x0.5)C white, green, brown, yellow (star-quad)
DeviceNet DeviceNet
CFROBOT8.030 (2xAWG24)C 9.5 31 77 CFROBOT8.030 120 (2xAWG24)C white/blue
+(2xAWG22)C (2xAWG22)C red/black
Ethernet/CAT5e/PoE Ethernet/CAT5e/PoE
CFROBOT8.045 4x(2x0.15)C 9.5 48 96 CFROBOT8.045 100 4x(2x0.15)C white-green/green, white-orange/orange,
white-blue/blue, white-brown/brown
Ethernet/CAT6/PoE Ethernet/CAT6/PoE
CFROBOT8.049 4x(2x0.15)C 9.5 48 96 CFROBOT8.049 100 4x(2x0.15)C white-green/green, white-orange/orange,
white-blue/blue, white-brown/brown
Ethernet/CAT6A Ethernet/CAT6A
CFROBOT8.050 4x(2x0.15)C 10.5 51 134 CFROBOT8.050 100 4x(2x0.15)C white-green/green, white-orange/orange,
white-blue/blue, white-brown/brown
Ethernet/CAT7 Ethernet/CAT7
CFROBOT8.052 4x(2x0.15)C 10.5 51 134 CFROBOT8.052 100 4x(2x0.15)C white-green/green, white-orange/orange,
white-blue/blue, white-brown/brown
Profinet Profinet
CFROBOT8.060 (2x(2x0.34))C 8.5 34 74 CFROBOT8.060 100 (2x(2x0.34))C white/blue, yellow/orange

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

CFROBOT cables used in robots for the automated
®
Cables available in the chainflex CASE systems in fuel tank production. These are supplied
®
®
Simple savings on delivery, storage space and re-ordering with as fully harnessed readychain systems.
the chainflex CASE - ship'n store by igus .
®
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case
Technical note on bus cables
chainflex bus cables have been specially developed and tested for continuously moving use in e-chains . Depending on the
®
®
material used for the outer jacket and on the underlying construction principle, the bus cables are designed for different mechanical
requirements and resistance to diverse media.
The cables have been electrically designed in such a way that, on the one hand, the electrical requirements of the respective bus
specification are reliably met and, on the other, that greater value is placed on a high degree of EMC reliability.
It is also ensured that the electrical values remain stable over the long term in spite of permanent movement.
The overall quality of transmission in a complete bus communication system, however, is not solely dependent on the cable used.
What is also essential is that all components (electronic parts, connecting system and cable) are precisely matched to each other
and that the maximum transmission lengths, which are dependent on the respective system, are adhered to with regard to the data
transmission rates needed. A cable is thus not solely responsible for the reliable transmission of signals.
®
igus advises you when you are designing your bus system to take all these factors into account and, with extensive tests, helps you
to ensure the process reliability of your system from the very beginning.
