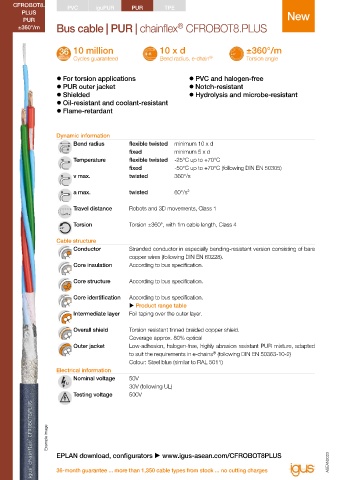

Page 416 - ASEAN Chainflex Catalogue 2023

CFROBOT8. PVC iguPUR PUR TPE CFROBOT8.
PLUS New Basic requirements low 1 2 3 4 5 6 7 highest PLUS
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
Oil resistance
none 1 2 3 4 highest
®
±360°/m Bus cable | PUR | chainflex CFROBOT8.PLUS Class 6.1.3.4 Torsion none 1 2 3 4 ±360° ±360°/m
10 million 10 x d ±360°/m Properties and approvals High
UV resistance
Cycles guaranteed Bend radius, e-chain ® Torsion angle

Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z For torsion applications z PVC and halogen-free
z PUR outer jacket z Notch-resistant Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Shielded z Hydrolysis and microbe-resistant
z Oil-resistant and coolant-resistant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Flame-retardant 1992)
Halogen-free Following DIN EN 60754

Dynamic information UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Bend radius flexible twisted minimum 10 x d service life calculator based on 2 billion test cycles per year"
fixed minimum 5 x d UL/CSA AWM See data sheet for details  www.igus-asean.com/CFROBOT8PLUS
Temperature flexible twisted -25°C up to +70°C
fixed -50°C up to +70°C (following DIN EN 50305) EAC Certificate No. RU C-DE.ME77.B.00295/19
v max. twisted 360°/s
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
a max. twisted 60°/s²
Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Travel distance Robots and 3D movements, Class 1
Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Torsion Torsion ±360°, with 1m cable length, Class 4 CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
CE Following 2014/35/EU
Cable structure
Conductor Stranded conductor in especially bending-resistant version consisting of bare UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
copper wires (following DIN EN 60228).
Core insulation According to bus specification.
Guaranteed service life (details see page 28-29)
Core structure According to bus specification. Cycles* 5 million 7.5 million 10 million
Temperature, Torsion max. Torsion max. Torsion max.
Core identification According to bus specification. from/to [°C] [°/m] [°/m] [°/m]
 Product range table -25/-15 ±330 ±240 ±150
Intermediate layer Foil taping over the outer layer. -15/+60 ±360 ±270 ±180
+60/+70 ±330 ±240 ±150
Overall shield Torsion resistant tinned braided copper shield. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Coverage approx. 80% optical
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted Typical application areas
to suit the requirements in e-chains (following DIN EN 50363-10-2) z For heaviest duty applications with torsion movements, Class 6
®
Colour: Steel blue (similar to RAL 5011) z Especially for robots and 3D movements, Class 1
Electrical information z Almost unlimited resistance to oil, Class 3
Nominal voltage 50V z Torsion ±360°, with 1m cable length, Class 4
30V (following UL) z Indoor and outdoor applications, UV-resistant
Testing voltage 500V z Robots, handling, spindle drives

Example image

EPLAN download, configurators  www.igus-asean.com/CFROBOT8PLUS

®
