CFROBOT4 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFROBOT4
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
±180°/m ® Oil resistance none 1 2 3 4 highest ±180°/m

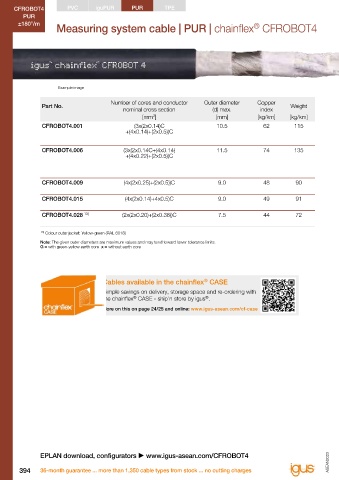

Measuring system cable | PUR | chainflex CFROBOT4 Class 6.1.3.3 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CFROBOT4.001 (3x(2x0.14)C 10.5 62 115 CFROBOT4.001 3x(2x0.14)C green/yellow, black/brown, red/orange
+(4x0.14)+(2x0.5))C 4x0.14 grey/blue/white-yellow/white-black
2x0.5 brown-red/brown-blue
CFROBOT4.006 (3x(2x0.14C+(4x0.14) 11.5 74 135 CFROBOT4.006 3x(2x0.14)C green/yellow, black/brown, red/orange
+(4x0.22)+(2x0.5))C (4x0.14) grey/blue/white-yellow/white-black

(4x0.22) yellow-brown/grey-brown/green-black/green-red
(2x0.5) brown-red/brown-blue
CFROBOT4.009 (4x(2x0.25)+(2x0.5))C 9.0 48 90 CFROBOT4.009 4x(2x0.25) brown/green, blue/violet, grey/pink, red/black
2x0.5 white, brown
CFROBOT4.015 (4x(2x0.14)+4x0.5)C 9.0 49 91 CFROBOT4.015 4x(2x0.14) brown/green, yellow/violet, grey/pink, red/black
4x0.5 blue, white, brown-green, white-green
CFROBOT4.028 13) (2x(2x0.20)+(2x0.38))C 7.5 44 72 CFROBOT4.028 13) 2x(2x0.20) green/yellow, pink/blue
(2x0.38) red/black
13) Colour outer jacket: Yellow-green (RAL 6018)
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

®
Cables available in the chainflex CASE Order example: CFROBOT4.009 – to your desired length (0.5m steps)
®
Simple savings on delivery, storage space and re-ordering with CFROBOT4 chainflex series .009 Code measuring system type
®
the chainflex CASE - ship'n store by igus .
®
Order online  www.igus-asean.com/CFROBOT4
More on this on page 24/25 and online: www.igus-asean.com/cf-case
Delivery time 24hrs or today.
Delivery time means time until goods are shipped.

EPLAN download, configurators  www.igus-asean.com/CFROBOT4

394 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 395
®
