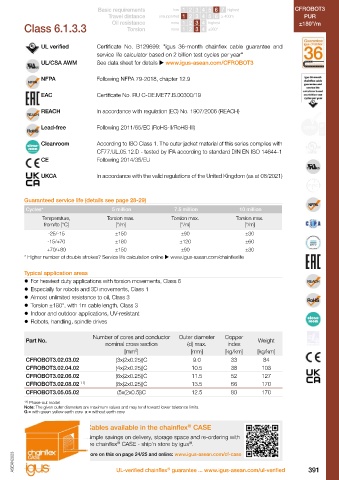

CFROBOT3 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFROBOT3
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
±180°/m ® Oil resistance none 1 2 3 4 highest ±180°/m
Data cable | PUR | chainflex CFROBOT3 Class 6.1.3.3 Torsion none 1 2 3 4 ±360°

10 million 10 x d ±180°/m UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
Cycles guaranteed Bend radius, e-chain ® Torsion angle
UL/CSA AWM See data sheet for details  www.igus-asean.com/CFROBOT3

z For torsion applications z Flame-retardant NFPA Following NFPA 79-2018, chapter 12.9
z PUR outer jacket z Notch-resistant
z Shielded z Hydrolysis and microbe-resistant EAC Certificate No. RU C-DE.ME77.B.00300/19
z Oil-resistant and coolant-resistant
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
Dynamic information
Bend radius flexible twisted minimum 10 x d Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
fixed minimum 5 x d
Temperature flexible twisted -25°C up to +80°C Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
fixed -50°C up to +80°C (following DIN EN 50305) CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
v max. twisted 180°/s CE Following 2014/35/EU

a max. twisted 60°/s² UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Travel distance Robots and 3D movements, Class 1
Guaranteed service life (details see page 28-29)
Torsion Torsion ±180°, with 1m cable length, Class 3 Cycles* 5 million 7.5 million 10 million
Temperature, Torsion max. Torsion max. Torsion max.
Cable structure from/to [°C] [°/m] [°/m] [°/m]
Conductor Stranded conductor in especially bending-resistant version consisting of bare -25/-15 ±150 ±90 ±30
copper wires (following DIN EN 60228). -15/+70 ±180 ±120 ±60
Core insulation Mechanically high-quality TPE mixture. +70/+80 ±150 ±90 ±30
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Core structure Cores twisted in pairs with a short pitch length, core pairs then wound with
short pitch lengths. Typical application areas
Core identification Colour code in accordance with DIN 47100. z For heaviest duty applications with torsion movements, Class 6
z Especially for robots and 3D movements, Class 1
Overall shield Extremely torsion-resistant tinned wound copper shield. z Almost unlimited resistance to oil, Class 3
Coverage approx. 85% optical z Torsion ±180°, with 1m cable length, Class 3
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted z Indoor and outdoor applications, UV-resistant
®
to suit the requirements in e-chains (following DIN EN 50363-10-2) z Robots, handling, spindle drives
Colour: Steel blue (similar to RAL 5011)
Electrical information Part No. Number of cores and conductor Outer diameter Copper Weight
Nominal voltage 300/500V (following DIN VDE 0298-3) nominal cross section (d) max. index
300V (following UL) [mm²] [mm] [kg/km] [kg/km]
Testing voltage 2,000V (following DIN EN 50395) CFROBOT3.02.03.02 (3x(2x0.25))C 9.0 33 84
CFROBOT3.02.04.02 (4x(2x0.25))C 10.5 38 103
Properties and approvals CFROBOT3.02.06.02 (6x(2x0.25))C 11.5 52 127
UV resistance High CFROBOT3.02.08.02 11) (8x(2x0.25))C 13.5 66 170
CFROBOT3.05.05.02 (5x(2x0.5))C 12.5 80 170
Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3 11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame Cables available in the chainflex CASE
Example image Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status Simple savings on delivery, storage space and re-ordering with
®
1992)
®
®
the chainflex CASE - ship'n store by igus .
EPLAN download, configurators  www.igus-asean.com/CFROBOT3 More on this on page 24/25 and online: www.igus-asean.com/cf-case
