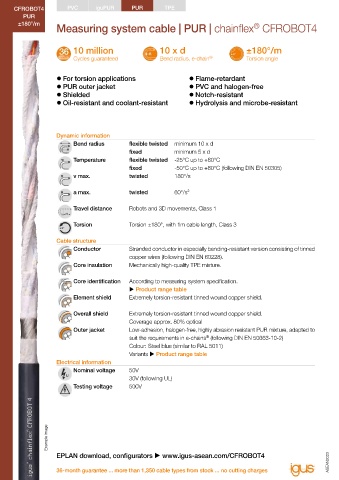

Page 398 - ASEAN Chainflex Catalogue 2023

CFROBOT4 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFROBOT4
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
±180°/m ® Oil resistance none 1 2 3 4 highest ±180°/m
Measuring system cable | PUR | chainflex CFROBOT4 Class 6.1.3.3 Torsion none 1 2 3 4 ±360°

10 million 10 x d ±180°/m Properties and approvals High
UV resistance
Cycles guaranteed Bend radius, e-chain ® Torsion angle

Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z For torsion applications z Flame-retardant
z PUR outer jacket z PVC and halogen-free Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Shielded z Notch-resistant
z Oil-resistant and coolant-resistant z Hydrolysis and microbe-resistant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
Halogen-free Following DIN EN 60754

Dynamic information UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Bend radius flexible twisted minimum 10 x d service life calculator based on 2 billion test cycles per year"
fixed minimum 5 x d UL/CSA AWM See data sheet for details  www.igus-asean.com/CFROBOT4
Temperature flexible twisted -25°C up to +80°C
fixed -50°C up to +80°C (following DIN EN 50305) NFPA Following NFPA 79-2018, chapter 12.9
v max. twisted 180°/s
EAC Certificate No. RU C-DE.ME77.B.00295/19
a max. twisted 60°/s²
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
Travel distance Robots and 3D movements, Class 1
Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Torsion Torsion ±180°, with 1m cable length, Class 3
Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Cable structure CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
Conductor Stranded conductor in especially bending-resistant version consisting of tinned CE Following 2014/35/EU
copper wires (following DIN EN 60228).
Core insulation Mechanically high-quality TPE mixture. UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Core identification According to measuring system specification.
 Product range table Guaranteed service life (details see page 28-29)
Element shield Extremely torsion-resistant tinned wound copper shield. Cycles* 5 million 7.5 million 10 million

Temperature, Torsion max. Torsion max. Torsion max.
Overall shield Extremely torsion-resistant tinned wound copper shield. from/to [°C] [°/m] [°/m] [°/m]
Coverage approx. 80% optical -25/-15 ±150 ±90 ±30
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted to -15/+70 ±180 ±120 ±60
suit the requirements in e-chains (following DIN EN 50363-10-2) +70/+80 ±150 ±90 ±30
®
Colour: Steel blue (similar to RAL 5011) * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Variants  Product range table
Electrical information Typical application areas
Nominal voltage 50V z For heaviest duty applications with torsion movements, Class 6
30V (following UL) z Especially for robots and 3D movements, Class 1
Testing voltage 500V z Almost unlimited resistance to oil, Class 3
z Torsion ±180°, with 1m cable length, Class 3
z Indoor and outdoor applications, UV-resistant
z Robots, handling, spindle drives

Example image

EPLAN download, configurators  www.igus-asean.com/CFROBOT4

392 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 393
®
