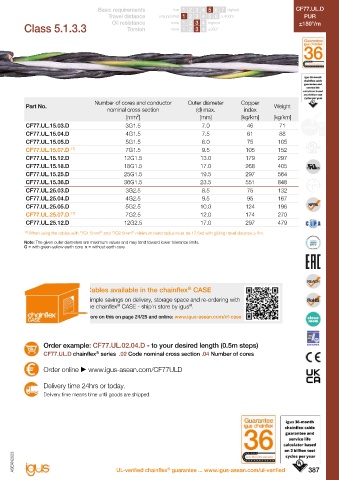

CF77.UL.D PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF77.UL.D
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
±180°/m ® Oil resistance none 1 2 3 4 highest ±180°/m
Control cable | PUR | chainflex CF77.UL.D Class 5.1.3.3 Torsion none 1 2 3 4 ±360°

Example image
Number of cores and conductor Outer diameter Copper
Part No. Weight Number of cores and conductor Outer diameter Copper
nominal cross section (d) max. index Part No. Weight
[mm²] [mm] [kg/km] [kg/km] nominal cross section (d) max. index
CF77.UL.02.03.INI 12) 3x0.25 5.0 9 29 [mm²] [mm] [kg/km] [kg/km]
CF77.UL.02.04.D 4x0.25 5.5 11 35 CF77.UL.15.03.D 3G1.5 7.0 46 71
CF77.UL.02.05.D 5x0.25 6.0 13 39 CF77.UL.15.04.D 4G1.5 7.5 61 88
CF77.UL.02.07.D 7x0.25 6.5 18 51 CF77.UL.15.05.D 5G1.5 8.0 75 105
CF77.UL.02.12.D 12x0.25 9.0 32 78 CF77.UL.15.07.D 17) 7G1.5 9.5 105 152
CF77.UL.02.18.D 18x0.25 10.5 47 127 CF77.UL.15.12.D 12G1.5 13.0 179 297
CF77.UL.02.25.D 25x0.25 11.5 63 155 CF77.UL.15.18.D 18G1.5 17.0 268 405
CF77.UL.03.04.INI 12) 4x0.34 6.0 14 37 CF77.UL.15.25.D 25G1.5 19.5 297 564
CF77.UL.03.05.INI 12) 5x0.34 6.0 18 36 CF77.UL.15.36.D 36G1.5 23.5 551 848
CF77.UL.03.05.INI.D 5x0.34 6.0 18 36 CF77.UL.25.03.D 3G2.5 8.5 75 132
CF77.UL.05.04.D 4G0.5 6.0 21 46 CF77.UL.25.04.D 4G2.5 9.5 95 167
CF77.UL.05.05.D 5G0.5 6.5 26 53 CF77.UL.25.05.D 17) 5G2.5 10.0 124 196
CF77.UL.05.07.D 7G0.5 7.5 39 78 CF77.UL.25.07.D 7G2.5 12.0 174 270
CF77.UL.05.12.D 12G0.5 10.0 63 130 CF77.UL.25.12.D 12G2.5 17.0 297 479
CF77.UL.05.18.D 18G0.5 12.0 94 184 17) When using the cables with "7G1.5mm²" and "7G2.5mm²" minimum bend radius must be 17.5xd with gliding travel distance ≥ 5m.
CF77.UL.05.25.D 25G0.5 14.0 129 243 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
CF77.UL.05.30.D 30G0.5 15.0 155 315
CF77.UL.07.03.D 3G0.75 6.5 23 52
CF77.UL.07.04.D 4G0.75 7.0 31 59
CF77.UL.07.05.D 5G0.75 7.5 38 71
CF77.UL.07.07.D 7G0.75 8.5 54 100
®
CF77.UL.07.12.D 12G0.75 12.0 91 180 Cables available in the chainflex CASE
CF77.UL.07.18.D 18G0.75 13.5 134 239 Simple savings on delivery, storage space and re-ordering with
CF77.UL.07.20.D 20G0.75 14.5 149 269 the chainflex CASE - ship'n store by igus .
®
®
CF77.UL.07.25.D 25G0.75 16.0 186 336 More on this on page 24/25 and online: www.igus-asean.com/cf-case
CF77.UL.07.36.D 36G0.75 19.0 279 506
CF77.UL.07.42.D 42G0.75 21.0 341 580
CF77.UL.10.02.D 2x1.0 6.5 21 51
CF77.UL.10.03.D 3G1.0 6.5 31 58 Order example: CF77.UL.02.04.D - to your desired length (0.5m steps)
®
CF77.UL.10.04.D 4G1.0 7.0 41 73 CF77.UL.D chainflex series .02 Code nominal cross section .04 Number of cores
CF77.UL.10.05.D 5G1.0 8.0 50 90
CF77.UL.10.07.D 7G1.0 9.0 71 120 Order online  www.igus-asean.com/CF77ULD
CF77.UL.10.12.D 12G1.0 12.5 120 220
CF77.UL.10.18.D 18G1.0 15.0 179 314 Delivery time 24hrs or today.
CF77.UL.10.25.D 25G1.0 17.5 248 431 Delivery time means time until goods are shipped.
CF77.UL.10.42.D 42G1.0 22.5 433 699
12) Colour outer jacket: Colza yellow (similar to RAL 1021)
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

EPLAN download, configurators  www.igus-asean.com/CF77ULD
