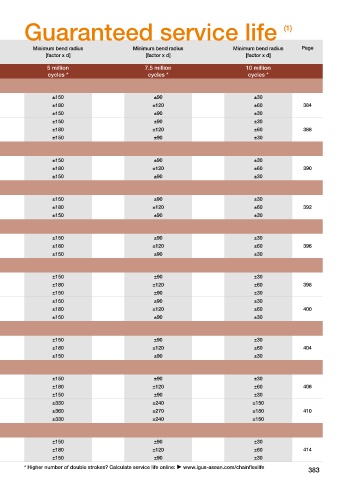

chainflex guarantee Guaranteed service life (1)
®

2
chainflex Temperature, v max. [°/s] a max. [°/s ] Minimum bend radius Minimum bend radius Minimum bend radius Page
®
cables from/to [°C] [factor x d] [factor x d] [factor x d]
twisted twisted
5 million 7.5 million 10 million
Twistable cables
cycles * cycles * cycles *
Control cables
-25 / -15 ±150 ±90 ±30
CF77.UL.D -15 / +70 180 60 ±180 ±120 ±60 384
+70 / +80 ±150 ±90 ±30
-25 / -15 ±150 ±90 ±30
CFROBOT2 -15 / +70 180 60 ±180 ±120 ±60 388
+70 / +80 ±150 ±90 ±30

Data cable
-25 / -15 ±150 ±90 ±30
CFROBOT3 -15 / +70 180 60 ±180 ±120 ±60 390
+70 / +80 ±150 ±90 ±30
Measuring system cable

-25 / -15 ±150 ±90 ±30
CFROBOT4 -15 / +70 180 60 ±180 ±120 ±60 392
+70 / +80 ±150 ±90 ±30

Fibre Optic Cable
-25 / -15 ±150 ±90 ±30
CFROBOT5 -15 / +70 180 60 ±180 ±120 ±60 396
+70 / +80 ±150 ±90 ±30
Motor cables

-25 / -15 ±150 ±90 ±30
CFROBOT6 -15 / +70 180 60 ±180 ±120 ±60 398
+70 / +80 ±150 ±90 ±30
-25 / -15 ±150 ±90 ±30
CFROBOT7 -15 / +70 180 60 ±180 ±120 ±60 400
+70 / +80 ±150 ±90 ±30
Spindle cable/Single core

-35 / -25 ±150 ±90 ±30
CFROBOT -15 / +80 180 60 ±180 ±120 ±60 404
+80 / +90 ±150 ±90 ±30

Bus cables
-25 / -15 ±150 ±90 ±30
CFROBOT8 -15 / +60 180 60 ±180 ±120 ±60 406
+60 / +70 ±150 ±90 ±30
-25 / -15 ±330 ±240 ±150
CFROBOT8.PLUS New! -15 / +60 360 60 ±360 ±270 ±180 410
+60 / +70 ±330 ±240 ±150
Hybrid cable

-25 / -15 ±150 ±90 ±30
CFROBOT9 -15 / +70 180 60 ±180 ±120 ±60 414
+70 / +80 ±150 ±90 ±30
382 (1) Guaranteed service life for these series (details  see page 28-29) * Higher number of double strokes? Calculate service life online:  www.igus-asean.com/chainflexlife 383
