CFROBOT2 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFROBOT2
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
±180°/m ® Oil resistance none 1 2 3 4 highest ±180°/m

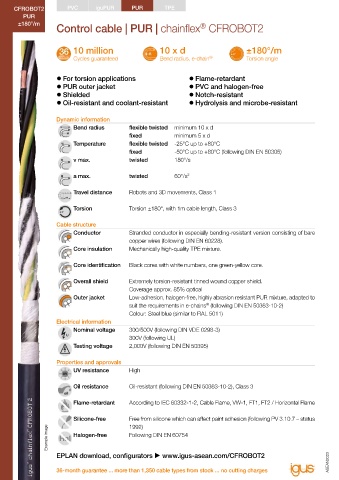

Control cable | PUR | chainflex CFROBOT2 Class 6.1.3.3 Torsion none 1 2 3 4 ±360°

10 million 10 x d ±180°/m UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
Cycles guaranteed Bend radius, e-chain ® Torsion angle
UL/CSA AWM See data sheet for details  www.igus-asean.com/CFROBOT2

z For torsion applications z Flame-retardant NFPA Following NFPA 79-2018, chapter 12.9
z PUR outer jacket z PVC and halogen-free
z Shielded z Notch-resistant EAC Certificate No. RU C-DE.ME77.B.00300/19
z Oil-resistant and coolant-resistant z Hydrolysis and microbe-resistant
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
Dynamic information
Bend radius flexible twisted minimum 10 x d Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
fixed minimum 5 x d
Temperature flexible twisted -25°C up to +80°C Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
fixed -50°C up to +80°C (following DIN EN 50305) CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
v max. twisted 180°/s CE Following 2014/35/EU

a max. twisted 60°/s² UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Travel distance Robots and 3D movements, Class 1
Guaranteed service life (details see page 28-29)
Torsion Torsion ±180°, with 1m cable length, Class 3 Cycles* 5 million 7.5 million 10 million
Temperature, Torsion max. Torsion max. Torsion max.
Cable structure from/to [°C] [°/m] [°/m] [°/m]
Conductor Stranded conductor in especially bending-resistant version consisting of bare -25/-15 ±150 ±90 ±30
copper wires (following DIN EN 60228). -15/+70 ±180 ±120 ±60
Core insulation Mechanically high-quality TPE mixture. +70/+80 ±150 ±90 ±30
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Core identification Black cores with white numbers, one green-yellow core.
Typical application areas
Overall shield Extremely torsion-resistant tinned wound copper shield. z For heaviest duty applications with torsion movements, Class 6
Coverage approx. 85% optical z Especially for robots and 3D movements, Class 1
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted to z Almost unlimited resistance to oil, Class 3
suit the requirements in e-chains (following DIN EN 50363-10-2) z Torsion ±180°, with 1m cable length, Class 3
®
Colour: Steel blue (similar to RAL 5011) z Indoor and outdoor applications, UV-resistant
Electrical information z Robots, handling, spindle drives
Nominal voltage 300/500V (following DIN VDE 0298-3)
300V (following UL) Part No. Number of cores and Outer diameter Copper Weight
Testing voltage 2,000V (following DIN EN 50395) conductor nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
Properties and approvals CFROBOT2.07.04.C (4G0.75)C 8.0 43 78
UV resistance High CFROBOT2.07.05.C (5G0.75)C 8.5 51 90
CFROBOT2.07.07.C (7G0.75)C 10.0 71 120
Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3 CFROBOT2.07.12.C (12G0.75)C 14.0 122 214
CFROBOT2.07.18.C (18G0.75)C 16.5 185 301
Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status Cables available in the chainflex CASE
®
1992)
Example image Halogen-free Following DIN EN 60754 Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
EPLAN download, configurators  www.igus-asean.com/CFROBOT2 More on this on page 24/25 and online: www.igus-asean.com/cf-case

388 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 389
®
