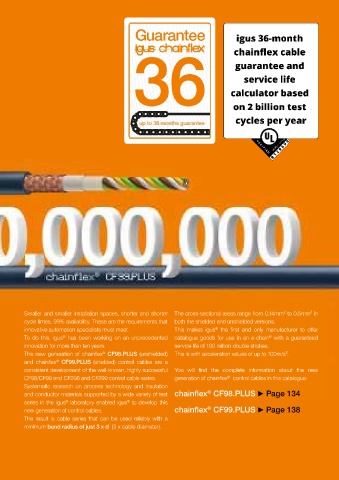

World's

first
3xd

Smaller and smaller installation spaces, shorter and shorter The cross-sectional areas range from 0.14mm² to 0.5mm² in
cycle times, 99% availability. These are the requirements that both the shielded and unshielded versions.
innovative automation specialists must meet. This makes igus the first and only manufacturer to offer
®
100 million To do this, igus has been working on an unprecedented catalogue goods for use in an e-chain with a guaranteed
®
®
service life of 100 million double strokes.
innovation for more than ten years.
double strokes The new generation of chainflex CF98.PLUS (unshielded) This is with acceleration values of up to 100m/s².
®
and chainflex CF99.PLUS (shielded) control cables are a
®
in e-chains ® consistent development of the well-known, highly successful You will find the complete information about the new
CF98/CF99 and CF298 and CF299 control cable series.
generation of chainflex control cables in this catalogue:
®
guaranteed! Systematic research on process technology and insulation ®
and conductor materials supported by a wide variety of test chainflex CF98.PLUS  Page 134
series in the igus laboratory enabled igus to develop this
®
®
®
new generation of control cables. chainflex CF99.PLUS  Page 138
The result is cable series that can be used reliably with a
minimum bend radius of just 3 x d (3 x cable diameter).

34 35
