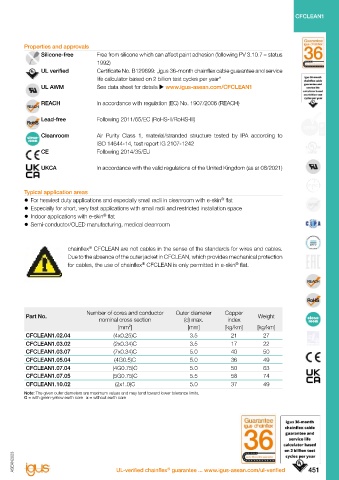

Page 457 - ASEAN Chainflex Catalogue 2023

CFCLEAN1 New CFCLEAN1
Control elements | chainflex CFCLEAN1
®

20 million Min. 70mm 3m Properties and approvals Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
Silicone-free
Double strokes guaranteed bend radius e-skin flat travel distance e-skin flat
®
®
1992)
UL verified Certificate No. B129699: „igus 36-month chainflex cable guarantee and service
®
z For heaviest duty applications in e-skin flat Now with life calculator based on 2 billion test cycles per year“
z PTFE foil wrap UL AWM See data sheet for details u www.igus-asean.com/CFCLEAN1
z Shielded UL approval
z Highly abrasion-resistant in combination REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
z PVC-free with e-skin flat
®
Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Cleanroom Air Purity Class 1, material/stranded structure tested by IPA according to
ISO 14644-14, test report IG 2107-1242
Dynamic information CE Following 2014/35/EU
Bend radius e-skin flat linear min. 70mm
®
(further radii in preparation, please see data sheet) UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
fixed minimum 3 x d
Temperature e-skin linear -10°C up to +80°C
®
fixed -25°C up to +90°C (following DIN EN 50305) Typical application areas
®
v max. unsupported 2m/s z For heaviest duty applications and especially small radii in cleanroom with e-skin flat
z Especially for short, very fast applications with small radii and restricted installation space
®
a max. 40m/s² z Indoor applications with e-skin flat
z Semi-conductor/OLED manufacturing, medical cleanroom
Travel distance Short, very fast applications with small radii and restricted installation space in
an e-skin flat
®
Cable structure chainflex CFCLEAN are not cables in the sense of the standards for wires and cables.
®
Conductor Very finely stranded special conductors with especially soft and bending Due to the absence of the outer jacket in CFCLEAN, which provides mechanical protection
®
®
resistant design, made of bare copper wires. for cables, the use of chainflex CFCLEAN is only permitted in e-skin flat.
Core insulation Mechanically high-quality FEP mixture.

Core structure Cores wound in a layer with especially short pitch length.

Core identification Cores < 0.5mm²: Colour code in accordance with DIN 47100.
Cores ≥ 0.5mm²: White cores with black numbers, one green-yellow core. Part No. Number of cores and conductor Outer diameter Copper Weight
Overall shield Extremely bending-resistant braiding made of tinned copper wires. nominal cross section (d) max. index
Coverage linear approx. 70%, optical approx. 90% [mm²] [mm] [kg/km] [kg/km]
Outer film Low-adhesion, extremely abrasion-resistant and highly flexible PTFE wrap, CFCLEAN1.02.04 (4x0.25)C 3.5 21 27
®
adapted to suit the requirements in e-skin flat. CFCLEAN1.03.02 (2x0.34)C 3.5 17 22
Colour: White CFCLEAN1.03.07 (7x0.34)C 5.0 40 50
Electrical information CFCLEAN1.05.04 (4G0.5)C 5.0 36 49
Nominal voltage 300/300V CFCLEAN1.07.04 (4G0.75)C 5.0 50 63
300V (following UL) CFCLEAN1.07.05 (5G0.75)C 5.5 58 74
Testing voltage 2,000V CFCLEAN1.10.02 (2x1.0)C 5.0 37 49
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Example image

ASEAN2023 ASEAN2023

36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 451
®
