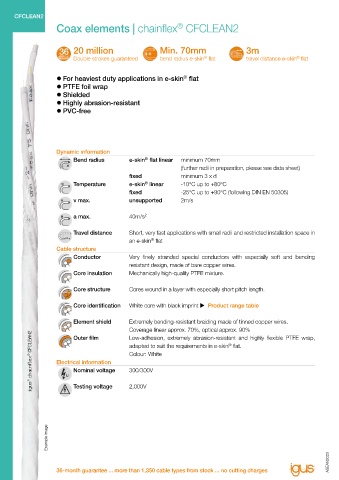

Page 458 - ASEAN Chainflex Catalogue 2023

CFCLEAN2 CFCLEAN2
Coax elements | chainflex CFCLEAN2
®

20 million Min. 70mm 3m Properties and approvals Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
Silicone-free
Double strokes guaranteed bend radius e-skin flat travel distance e-skin flat
®
®
1992)
UL verified Certificate No. B129699: „igus 36-month chainflex cable guarantee and service
®
z For heaviest duty applications in e-skin flat life calculator based on 2 billion test cycles per year“
z PTFE foil wrap REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
z Shielded
z Highly abrasion-resistant Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
z PVC-free
Cleanroom Air Purity Class 1, material/stranded structure tested by IPA according to
ISO 14644-14, test report IG 2107-1242
CE Following 2014/35/EU

Dynamic information UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Bend radius e-skin flat linear minimum 70mm
®
(further radii in preparation, please see data sheet)
fixed minimum 3 x d Typical application areas
®
Temperature e-skin linear -10°C up to +80°C z For heaviest duty applications and especially small radii in cleanroom with e-skin flat
®
fixed -25°C up to +90°C (following DIN EN 50305) z Especially for short, very fast applications with small radii and restricted installation space
v max. unsupported 2m/s z Indoor applications with e-skin flat
®
z Semi-conductor/OLED manufacturing, medical cleanroom
a max. 40m/s²

®
Travel distance Short, very fast applications with small radii and restricted installation space in chainflex CFCLEAN are not cables in the sense of the normal standards for cables. Due
®
an e-skin flat to the absence of the outer jacket in CFCLEAN, which provides mechanical protection for
®
Cable structure cables, the use of chainflex CFCLEAN is only permitted inside e-skin flat.
®
Conductor Very finely stranded special conductors with especially soft and bending
resistant design, made of bare copper wires.
Core insulation Mechanically high-quality PTFE mixture.
Number of cores and conductor Outer diameter Copper
Part No. Weight
Core structure Cores wound in a layer with especially short pitch length. nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
Core identification White core with black imprint u Product range table CFCLEAN2.KOAX1.03 3xHF75-0.3/1.6 6.5 23 57
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Element shield Extremely bending-resistant braiding made of tinned copper wires.
Coverage linear approx. 70%, optical approx. 90%
Outer film Low-adhesion, extremely abrasion-resistant and highly flexible PTFE wrap,
adapted to suit the requirements in e-skin flat.
®
Colour: White
Electrical information Characteristic wave
Nominal voltage 300/300V Part No. impedance approx. Core identification
[Ω]
Testing voltage 2,000V CFCLEAN2.KOAX1.03 75 Coax 75Ohm -1-, Coax 75Ohm -2-, Coax 75Ohm -3-

Example image

ASEAN2023 ASEAN2023

36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 453
®
