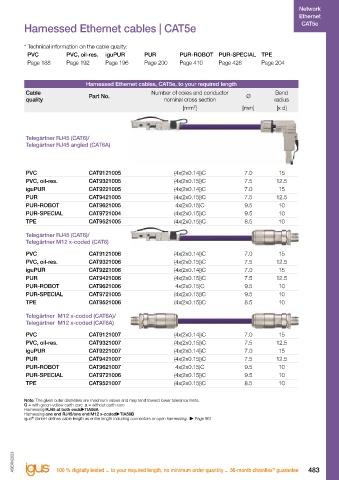

Page 489 - ASEAN Chainflex Catalogue 2023

Network Network
Ethernet Ethernet
CAT5e CAT5e
Harnessed Ethernet cables | CAT5e Harnessed Ethernet cables | CAT5e

* Technical information on the cable quality: * Technical information on the cable quality:
PVC PVC, oil-res. iguPUR PUR PUR-ROBOT PUR-SPECIAL TPE PVC PVC, oil-res. iguPUR PUR PUR-ROBOT PUR-SPECIAL TPE
Page 188 Page 192 Page 196 Page 200 Page 410 Page 428 Page 204 Page 188 Page 192 Page 196 Page 200 Page 410 Page 428 Page 204

Harnessed Ethernet cables, CAT5e, to your required length Harnessed Ethernet cables, CAT5e, to your required length
Cable Part No. Number of cores and conductor Ø Bend Cable Part No. Number of cores and conductor Ø Bend
quality nominal cross section radius quality nominal cross section radius
[mm²] [mm] [x d] [mm²] [mm] [x d]

Telegärtner RJ45 (CAT6A)/
Telegärtner RJ45 (CAT6A)
Telegärtner RJ45 (CAT6)/
PVC CAT9121002 (4x(2x0.14))C 7.0 15 Telegärtner RJ45 angled (CAT6A)
PVC, oil-res. CAT9321002 (4x(2x0.15))C 7.5 12.5
iguPUR CAT9221002 (4x(2x0.14))C 7.0 15
PUR CAT9421002 (4x(2x0.15))C 7.5 12.5
PUR-ROBOT CAT9621002 4x(2x0.15)C 9.5 10 PVC CAT9121005 (4x(2x0.14))C 7.0 15
PUR-SPECIAL CAT9721001 (4x(2x0.15))C 9.5 10 PVC, oil-res. CAT9321005 (4x(2x0.15))C 7.5 12.5
TPE CAT9521002 (4x(2x0.15))C 8.5 10 iguPUR CAT9221005 (4x(2x0.14))C 7.0 15
PUR CAT9421005 (4x(2x0.15))C 7.5 12.5
Harting RJ45 (CAT6A)/ PUR-ROBOT CAT9621005 4x(2x0.15)C 9.5 10
Harting RJ45 (CAT6A)
PUR-SPECIAL CAT9721004 (4x(2x0.15))C 9.5 10
PVC CAT9121003 (4x(2x0.14))C 7.0 15 TPE CAT9521005 (4x(2x0.15))C 8.5 10
PVC, oil-res. CAT9321003 (4x(2x0.15))C 7.5 12.5
iguPUR CAT9221003 (4x(2x0.14))C 7.0 15 Telegärtner RJ45 (CAT6)/
Telegärtner M12 x-coded (CAT6)
PUR CAT9421003 (4x(2x0.15))C 7.5 12.5
PUR-ROBOT CAT9621003 4x(2x0.15)C 9.5 10 PVC CAT9121006 (4x(2x0.14))C 7.0 15
PUR-SPECIAL CAT9721002 (4x(2x0.15))C 9.5 10 PVC, oil-res. CAT9321006 (4x(2x0.15))C 7.5 12.5
TPE CAT9521003 (4x(2x0.15))C 8.5 10 iguPUR CAT9221006 (4x(2x0.14))C 7.0 15
PUR CAT9421006 (4x(2x0.15))C 7.5 12.5
Telegärtner RJ45 (CAT6)/ PUR-ROBOT CAT9621006 4x(2x0.15)C 9.5 10
Telegärtner RJ45 (CAT6) PUR-SPECIAL CAT9721005 (4x(2x0.15))C 9.5 10

PVC CAT9121004 (4x(2x0.14))C 7.0 15 TPE CAT9521006 (4x(2x0.15))C 8.5 10
PVC, oil-res. CAT9321004 (4x(2x0.15))C 7.5 12.5
iguPUR CAT9221004 (4x(2x0.14))C 7.0 15 Telegärtner M12 x-coded (CAT6A)/
Telegärtner M12 x-coded (CAT6A)
PUR CAT9421004 (4x(2x0.15))C 7.5 12.5
PUR-ROBOT CAT9621004 4x(2x0.15)C 9.5 10 PVC CAT9121007 (4x(2x0.14))C 7.0 15
PUR-SPECIAL CAT9721003 (4x(2x0.15))C 9.5 10 PVC, oil-res. CAT9321007 (4x(2x0.15))C 7.5 12.5
TPE CAT9521004 (4x(2x0.15))C 8.5 10 iguPUR CAT9221007 (4x(2x0.14))C 7.0 15
PUR CAT9421007 (4x(2x0.15))C 7.5 12.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. PUR-ROBOT CAT9621007 4x(2x0.15)C 9.5 10
G = with green-yellow earth core x = without earth core PUR-SPECIAL CAT9721006 (4x(2x0.15))C 9.5 10
Harnessing RJ45 at both endsTIA56A
Harnessing one end RJ45/one end M12 x-codedTIA56B TPE CAT9521007 (4x(2x0.15))C 8.5 10
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A
Harnessing one end RJ45/one end M12 x-codedTIA56B
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®

ASEAN2023 ASEAN2023

482 EPLAN download, configurators  www.igus-asean.com/ethernet 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 483
®
