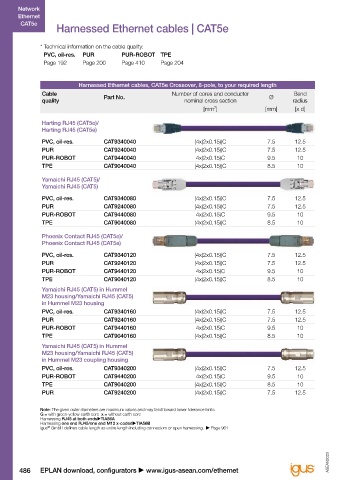

Page 492 - ASEAN Chainflex Catalogue 2023

Network Network
Ethernet Ethernet
CAT5e CAT5e
Harnessed Ethernet cables | CAT5e Harnessed Ethernet cables | CAT5e

* Technical information on the cable quality: * Technical information on the cable quality:
PVC, oil-res. PUR PUR-ROBOT TPE PVC, oil-res. PUR PUR-ROBOT TPE
Page 192 Page 200 Page 410 Page 204 Page 192 Page 200 Page 410 Page 204

Harnessed Ethernet cables, CAT5e Crossover, 8-pole, to your required length Harnessed Ethernet cables, CAT5e, to your required length
Cable Part No. Number of cores and conductor Ø Bend Cable Part No. Number of cores and conductor Ø Bend
quality nominal cross section radius quality nominal cross section radius
[mm²] [mm] [x d] [mm²] [mm] [x d]

Harting RJ45 (CAT5e)/ Hirose RJ45 (CAT5e)/
Harting RJ45 (CAT5e) TE Intercontec 615 signal connector
PVC, oil-res. CAT9340040 (4x(2x0.15))C 7.5 12.5 PVC, oil-res. CAT9340800 (4x(2x0.15))C 7.5 12.5
PUR CAT9240040 (4x(2x0.15))C 7.5 12.5 PUR CAT9240800 (4x(2x0.15))C 7.5 12.5
PUR-ROBOT CAT9440040 4x(2x0.15)C 9.5 10 PUR-ROBOT CAT9440800 4x(2x0.15)C 9.5 10
TPE CAT9040040 (4x(2x0.15))C 8.5 10 TPE CAT9040800 (4x(2x0.15))C 8.5 10
Yamaichi RJ45 (CAT5)/ TE Intercontec 615 signal coupling/
Yamaichi RJ45 (CAT5) TE Intercontec 615 signal connector

PVC, oil-res. CAT9340080 (4x(2x0.15))C 7.5 12.5 PVC, oil-res. CAT9340810 (4x(2x0.15))C 7.5 12.5
PUR CAT9240080 (4x(2x0.15))C 7.5 12.5 PUR CAT9240810 (4x(2x0.15))C 7.5 12.5
PUR-ROBOT CAT9440080 4x(2x0.15)C 9.5 10 PUR-ROBOT CAT9440810 4x(2x0.15)C 9.5 10
TPE CAT9040080 (4x(2x0.15))C 8.5 10 TPE CAT9040810 (4x(2x0.15))C 8.5 10

Phoenix Contact RJ45 (CAT5e)/ TE Intercontec 615 signal coupling/
Phoenix Contact RJ45 (CAT5e) Hirose RJ45 (CAT5e)

PVC, oil-res. CAT9340120 (4x(2x0.15))C 7.5 12.5 PVC, oil-res. CAT9340820 (4x(2x0.15))C 7.5 12.5
PUR CAT9240120 (4x(2x0.15))C 7.5 12.5 PUR CAT9240820 (4x(2x0.15))C 7.5 12.5
PUR-ROBOT CAT9440120 4x(2x0.15)C 9.5 10 PUR-ROBOT CAT9440820 4x(2x0.15)C 9.5 10
TPE CAT9040120 (4x(2x0.15))C 8.5 10 TPE CAT9040820 (4x(2x0.15))C 8.5 10

Yamaichi RJ45 (CAT5) in Hummel
M23 housing/Yamaichi RJ45 (CAT5) Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
in Hummel M23 housing G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A
PVC, oil-res. CAT9340160 (4x(2x0.15))C 7.5 12.5 Harnessing one end RJ45/one end M12 x-codedTIA56B
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
PUR CAT9240160 (4x(2x0.15))C 7.5 12.5
PUR-ROBOT CAT9440160 4x(2x0.15)C 9.5 10
TPE CAT9040160 (4x(2x0.15))C 8.5 10
Yamaichi RJ45 (CAT5) in Hummel
M23 housing/Yamaichi RJ45 (CAT5)
in Hummel M23 coupling housing
PVC, oil-res. CAT9340200 (4x(2x0.15))C 7.5 12.5
PUR-ROBOT CAT9440200 4x(2x0.15)C 9.5 10
TPE CAT9040200 (4x(2x0.15))C 8.5 10
PUR CAT9240200 (4x(2x0.15))C 7.5 12.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A
Harnessing one end RJ45/one end M12 x-codedTIA56B
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®

ASEAN2023 ASEAN2023

486 EPLAN download, configurators  www.igus-asean.com/ethernet 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 487
®
