Network Network
Ethernet Ethernet
CAT5e CAT5e

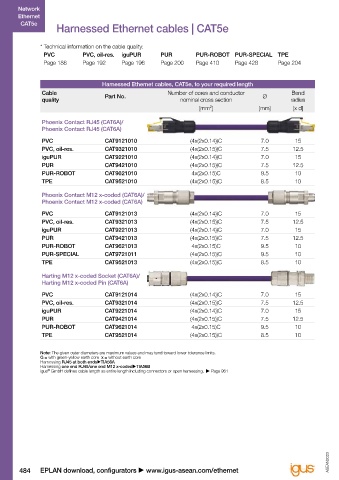

Harnessed Ethernet cables | CAT5e Harnessed Ethernet cables | CAT5e

* Technical information on the cable quality: * Technical information on the cable quality:
PVC PVC, oil-res. iguPUR PUR PUR-ROBOT PUR-SPECIAL TPE PVC, oil-res. PUR PUR-ROBOT TPE
Page 188 Page 192 Page 196 Page 200 Page 410 Page 428 Page 204 Page 192 Page 200 Page 410 Page 204

Harnessed Ethernet cables, CAT5e, to your required length Harnessed Ethernet cables, CAT5e Straight, 4 and 8-pole, to your required length
Cable Part No. Number of cores and conductor Ø Bend Cable Number of cores and conductor Bend
quality nominal cross section radius quality Part No. nominal cross section Ø radius
[mm²] [mm] [x d] [mm²] [mm] [x d]

Phoenix Contact RJ45 (CAT6A)/ Harting RJ45 (CAT5)/
Phoenix Contact RJ45 (CAT6A) Harting RJ45 (CAT5)
PVC CAT9121010 (4x(2x0.14))C 7.0 15 TPE CAT9040001 (4x0.25)C 7.0 10
PVC, oil-res. CAT9321010 (4x(2x0.15))C 7.5 12.5
iguPUR CAT9221010 (4x(2x0.14))C 7.0 15 Harting RJ45 (CAT5e)/
PUR CAT9421010 (4x(2x0.15))C 7.5 12.5 Harting RJ45 (CAT5e)
PUR-ROBOT CAT9621010 4x(2x0.15)C 9.5 10 PVC, oil-res. CAT9340020 (4x(2x0.15))C 7.5 12.5
TPE CAT9521010 (4x(2x0.15))C 8.5 10 PUR CAT9240020 (4x(2x0.15))C 7.5 12.5
PUR-ROBOT CAT9440020 4x(2x0.15)C 9.5 10
Phoenix Contact M12 x-coded (CAT6A)/ TPE CAT9040020 (4x(2x0.15))C 8.5 10
Phoenix Contact M12 x-coded (CAT6A)

PVC CAT9121013 (4x(2x0.14))C 7.0 15 Yamaichi RJ45 (CAT5)/
PVC, oil-res. CAT9321013 (4x(2x0.15))C 7.5 12.5 Yamaichi RJ45 (CAT5)
iguPUR CAT9221013 (4x(2x0.14))C 7.0 15 PVC, oil-res. CAT9340060 (4x(2x0.15))C 7.5 12.5
PUR CAT9421013 (4x(2x0.15))C 7.5 12.5 PUR CAT9240060 (4x(2x0.15))C 7.5 12.5
PUR-ROBOT CAT9621013 4x(2x0.15)C 9.5 10 PUR-ROBOT CAT9440060 4x(2x0.15)C 9.5 10
PUR-SPECIAL CAT9721011 (4x(2x0.15))C 9.5 10 TPE CAT9040060 (4x(2x0.15))C 8.5 10
TPE CAT9521013 (4x(2x0.15))C 8.5 10
Phoenix Contact RJ45 (CAT5e)/
Harting M12 x-coded Socket (CAT6A)/ Phoenix Contact RJ45 (CAT5e)
Harting M12 x-coded Pin (CAT6A)
PVC, oil-res. CAT9340100 (4x(2x0.15))C 7.5 12.5
PVC CAT9121014 (4x(2x0.14))C 7.0 15 PUR CAT9240100 (4x(2x0.15))C 7.5 12.5
PVC, oil-res. CAT9321014 (4x(2x0.15))C 7.5 12.5 PUR-ROBOT CAT9440100 4x(2x0.15)C 9.5 10
iguPUR CAT9221014 (4x(2x0.14))C 7.0 15 TPE CAT9040100 (4x(2x0.15))C 8.5 10
PUR CAT9421014 (4x(2x0.15))C 7.5 12.5
PUR-ROBOT CAT9621014 4x(2x0.15)C 9.5 10 Yamaichi RJ45 (CAT5) in Hummel M23 housing/
TPE CAT9521014 (4x(2x0.15))C 8.5 10 Yamaichi RJ45 (CAT5) in Hummel M23 housing
PVC, oil-res. CAT9340140 (4x(2x0.15))C 7.5 12.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. PUR CAT9240140 (4x(2x0.15))C 7.5 12.5
G = with green-yellow earth core x = without earth core PUR-ROBOT CAT9440140 4x(2x0.15)C 9.5 10
Harnessing RJ45 at both endsTIA56A
Harnessing one end RJ45/one end M12 x-codedTIA56B TPE CAT9040140 (4x(2x0.15))C 8.5 10
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
Yamaichi RJ45 (CAT5) in Hummel M23 housing/
Yamaichi RJ45 (CAT5) in Hummel M23
coupling housing
PVC, oil-res. CAT9340180 (4x(2x0.15))C 7.5 12.5
PUR CAT9240180 (4x(2x0.15))C 7.5 12.5
PUR-ROBOT CAT9440180 4x(2x0.15)C 9.5 10
TPE CAT9040180 (4x(2x0.15))C 8.5 10

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A
ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
Harnessing one end RJ45/one end M12 x-codedTIA56B
®
484 EPLAN download, configurators  www.igus-asean.com/ethernet 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 485
®
