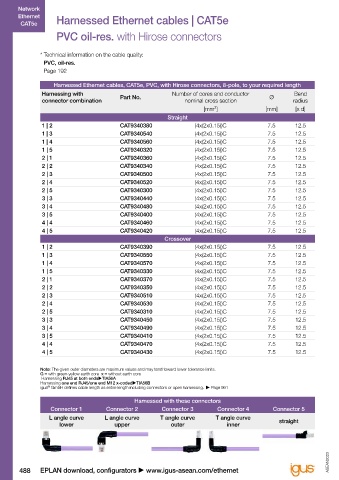

Page 494 - ASEAN Chainflex Catalogue 2023

Network Network
Ethernet Harnessed Ethernet cables | CAT5e Harnessed Ethernet cables | CAT5e Ethernet
CAT5e CAT5e
PVC oil-res. with Hirose connectors PUR with Hirose connector

* Technical information on the cable quality: * Technical information on the cable quality:
PVC, oil-res. PUR
Page 192 Page 200

Harnessed Ethernet cables, CAT5e, PVC, with Hirose connectors, 8-pole, to your required length Harnessed Ethernet cables, CAT5e, PUR, with Hirose connectors, 8-pole, to your required length
Harnessing with Part No. Number of cores and conductor Ø Bend Harnessing with Part No. Number of cores and conductor Ø Bend
connector combination nominal cross section radius connector combination nominal cross section radius
[mm²] [mm] [x d] [mm²] [mm] [x d]
Straight Straight
1 | 2 CAT9340380 (4x(2x0.15))C 7.5 12.5 1 | 2 CAT9240380 (4x(2x0.15))C 7.5 12.5
1 | 3 CAT9340540 (4x(2x0.15))C 7.5 12.5 1 | 3 CAT9240540 (4x(2x0.15))C 7.5 12.5
1 | 4 CAT9340560 (4x(2x0.15))C 7.5 12.5 1 | 4 CAT9240560 (4x(2x0.15))C 7.5 12.5
1 | 5 CAT9340320 (4x(2x0.15))C 7.5 12.5 1 | 5 CAT9240320 (4x(2x0.15))C 7.5 12.5
2 | 1 CAT9340360 (4x(2x0.15))C 7.5 12.5 2 | 1 CAT9240360 (4x(2x0.15))C 7.5 12.5
2 | 2 CAT9340340 (4x(2x0.15))C 7.5 12.5 2 | 2 CAT9240340 (4x(2x0.15))C 7.5 12.5
2 | 3 CAT9340500 (4x(2x0.15))C 7.5 12.5 2 | 3 CAT9240500 (4x(2x0.15))C 7.5 12.5
2 | 4 CAT9340520 (4x(2x0.15))C 7.5 12.5 2 | 4 CAT9240520 (4x(2x0.15))C 7.5 12.5
2 | 5 CAT9340300 (4x(2x0.15))C 7.5 12.5 2 | 5 CAT9240300 (4x(2x0.15))C 7.5 12.5
3 | 3 CAT9340440 (4x(2x0.15))C 7.5 12.5 3 | 3 CAT9240440 (4x(2x0.15))C 7.5 12.5
3 | 4 CAT9340480 (4x(2x0.15))C 7.5 12.5 3 | 4 CAT9240480 (4x(2x0.15))C 7.5 12.5
3 | 5 CAT9340400 (4x(2x0.15))C 7.5 12.5 3 | 5 CAT9240400 (4x(2x0.15))C 7.5 12.5
4 | 4 CAT9340460 (4x(2x0.15))C 7.5 12.5 4 | 4 CAT9240460 (4x(2x0.15))C 7.5 12.5
4 | 5 CAT9340420 (4x(2x0.15))C 7.5 12.5 4 | 5 CAT9240420 (4x(2x0.15))C 7.5 12.5
Crossover Crossover
1 | 2 CAT9340390 (4x(2x0.15))C 7.5 12.5 1 | 2 CAT9240390 (4x(2x0.15))C 7.5 12.5
1 | 3 CAT9340550 (4x(2x0.15))C 7.5 12.5 1 | 3 CAT9240550 (4x(2x0.15))C 7.5 12.5
1 | 4 CAT9340570 (4x(2x0.15))C 7.5 12.5 1 | 4 CAT9240570 (4x(2x0.15))C 7.5 12.5
1 | 5 CAT9340330 (4x(2x0.15))C 7.5 12.5 1 | 5 CAT9240330 (4x(2x0.15))C 7.5 12.5
2 | 1 CAT9340370 (4x(2x0.15))C 7.5 12.5 2 | 1 CAT9240370 (4x(2x0.15))C 7.5 12.5
2 | 2 CAT9340350 (4x(2x0.15))C 7.5 12.5 2 | 2 CAT9240350 (4x(2x0.15))C 7.5 12.5
2 | 3 CAT9340510 (4x(2x0.15))C 7.5 12.5 2 | 3 CAT9240510 (4x(2x0.15))C 7.5 12.5
2 | 4 CAT9340530 (4x(2x0.15))C 7.5 12.5 2 | 4 CAT9240530 (4x(2x0.15))C 7.5 12.5
2 | 5 CAT9340310 (4x(2x0.15))C 7.5 12.5 2 | 5 CAT9240310 (4x(2x0.15))C 7.5 12.5
3 | 3 CAT9340450 (4x(2x0.15))C 7.5 12.5 3 | 3 CAT9240450 (4x(2x0.15))C 7.5 12.5
3 | 4 CAT9340490 (4x(2x0.15))C 7.5 12.5 3 | 4 CAT9240490 (4x(2x0.15))C 7.5 12.5
3 | 5 CAT9340410 (4x(2x0.15))C 7.5 12.5 3 | 5 CAT9240410 (4x(2x0.15))C 7.5 12.5
4 | 4 CAT9340470 (4x(2x0.15))C 7.5 12.5 4 | 4 CAT9240470 (4x(2x0.15))C 7.5 12.5
4 | 5 CAT9340430 (4x(2x0.15))C 7.5 12.5 4 | 5 CAT9240430 (4x(2x0.15))C 7.5 12.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A Harnessing RJ45 at both endsTIA56A
Harnessing one end RJ45/one end M12 x-codedTIA56B Harnessing one end RJ45/one end M12 x-codedTIA56B
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
Harnessed with these connectors Harnessed with these connectors
Connector 1 Connector 2 Connector 3 Connector 4 Connector 5 Connector 1 Connector 2 Connector 3 Connector 4 Connector 5
L angle curve L angle curve T angle curve T angle curve straight L angle curve L angle curve T angle curve T angle curve straight
lower upper outer inner lower upper outer inner

ASEAN2023 ASEAN2023

488 EPLAN download, configurators  www.igus-asean.com/ethernet 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 489
®
