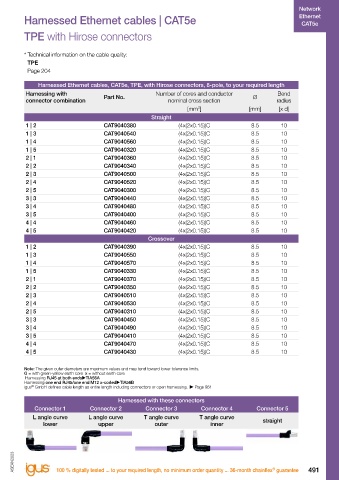

Page 497 - ASEAN Chainflex Catalogue 2023

Network Network
Ethernet Harnessed Ethernet cables | CAT5e Harnessed Ethernet cables | CAT5e Ethernet
CAT5e CAT5e
PUR-ROBOT with Hirose connectors TPE with Hirose connectors

* Technical information on the cable quality: * Technical information on the cable quality:
PUR-ROBOT TPE
Page 410 Page 204

Harnessed Ethernet cables, CAT5e, PUR-ROBOT, with Hirose connectors, 8-pole, to your required length Harnessed Ethernet cables, CAT5e, TPE, with Hirose connectors, 8-pole, to your required length
Harnessing with Part No. Number of cores and conductor Ø Bend Harnessing with Part No. Number of cores and conductor Ø Bend
connector combination nominal cross section radius connector combination nominal cross section radius
[mm²] [mm] [x d] [mm²] [mm] [x d]
Straight Straight
1 | 2 CAT9440380 4x(2x0.15)C 9.5 10 1 | 2 CAT9040380 (4x(2x0.15))C 8.5 10
1 | 3 CAT9440540 4x(2x0.15)C 9.5 10 1 | 3 CAT9040540 (4x(2x0.15))C 8.5 10
1 | 4 CAT9440560 4x(2x0.15)C 9.5 10 1 | 4 CAT9040560 (4x(2x0.15))C 8.5 10
1 | 5 CAT9440320 4x(2x0.15)C 9.5 10 1 | 5 CAT9040320 (4x(2x0.15))C 8.5 10
2 | 1 CAT9440360 4x(2x0.15)C 9.5 10 2 | 1 CAT9040360 (4x(2x0.15))C 8.5 10
2 | 2 CAT9440340 4x(2x0.15)C 9.5 10 2 | 2 CAT9040340 (4x(2x0.15))C 8.5 10
2 | 3 CAT9440500 4x(2x0.15)C 9.5 10 2 | 3 CAT9040500 (4x(2x0.15))C 8.5 10
2 | 4 CAT9440520 4x(2x0.15)C 9.5 10 2 | 4 CAT9040520 (4x(2x0.15))C 8.5 10
2 | 5 CAT9440300 4x(2x0.15)C 9.5 10 2 | 5 CAT9040300 (4x(2x0.15))C 8.5 10
3 | 3 CAT9440440 4x(2x0.15)C 9.5 10 3 | 3 CAT9040440 (4x(2x0.15))C 8.5 10
3 | 4 CAT9440480 4x(2x0.15)C 9.5 10 3 | 4 CAT9040480 (4x(2x0.15))C 8.5 10
3 | 5 CAT9440400 4x(2x0.15)C 9.5 10 3 | 5 CAT9040400 (4x(2x0.15))C 8.5 10
4 | 4 CAT9440460 4x(2x0.15)C 9.5 10 4 | 4 CAT9040460 (4x(2x0.15))C 8.5 10
4 | 5 CAT9440420 4x(2x0.15)C 9.5 10 4 | 5 CAT9040420 (4x(2x0.15))C 8.5 10
Crossover Crossover
1 | 2 CAT9440390 4x(2x0.15)C 9.5 10 1 | 2 CAT9040390 (4x(2x0.15))C 8.5 10
1 | 3 CAT9440550 4x(2x0.15)C 9.5 10 1 | 3 CAT9040550 (4x(2x0.15))C 8.5 10
1 | 4 CAT9440570 4x(2x0.15)C 9.5 10 1 | 4 CAT9040570 (4x(2x0.15))C 8.5 10
1 | 5 CAT9440330 4x(2x0.15)C 9.5 10 1 | 5 CAT9040330 (4x(2x0.15))C 8.5 10
2 | 1 CAT9440370 4x(2x0.15)C 9.5 10 2 | 1 CAT9040370 (4x(2x0.15))C 8.5 10
2 | 2 CAT9440350 4x(2x0.15)C 9.5 10 2 | 2 CAT9040350 (4x(2x0.15))C 8.5 10
2 | 3 CAT9440510 4x(2x0.15)C 9.5 10 2 | 3 CAT9040510 (4x(2x0.15))C 8.5 10
2 | 4 CAT9440530 4x(2x0.15)C 9.5 10 2 | 4 CAT9040530 (4x(2x0.15))C 8.5 10
2 | 5 CAT9440310 4x(2x0.15)C 9.5 10 2 | 5 CAT9040310 (4x(2x0.15))C 8.5 10
3 | 3 CAT9440450 4x(2x0.15)C 9.5 10 3 | 3 CAT9040450 (4x(2x0.15))C 8.5 10
3 | 4 CAT9440490 4x(2x0.15)C 9.5 10 3 | 4 CAT9040490 (4x(2x0.15))C 8.5 10
3 | 5 CAT9440410 4x(2x0.15)C 9.5 10 3 | 5 CAT9040410 (4x(2x0.15))C 8.5 10
4 | 4 CAT9440470 4x(2x0.15)C 9.5 10 4 | 4 CAT9040470 (4x(2x0.15))C 8.5 10
4 | 5 CAT9440430 4x(2x0.15)C 9.5 10 4 | 5 CAT9040430 (4x(2x0.15))C 8.5 10

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A Harnessing RJ45 at both endsTIA56A
Harnessing one end RJ45/one end M12 x-codedTIA56B Harnessing one end RJ45/one end M12 x-codedTIA56B
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
Harnessed with these connectors Harnessed with these connectors
Connector 1 Connector 2 Connector 3 Connector 4 Connector 5 Connector 1 Connector 2 Connector 3 Connector 4 Connector 5
L angle curve L angle curve T angle curve T angle curve straight L angle curve L angle curve T angle curve T angle curve straight
lower upper outer inner lower upper outer inner

ASEAN2023 ASEAN2023

490 EPLAN download, configurators  www.igus-asean.com/ethernet 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 491
®
