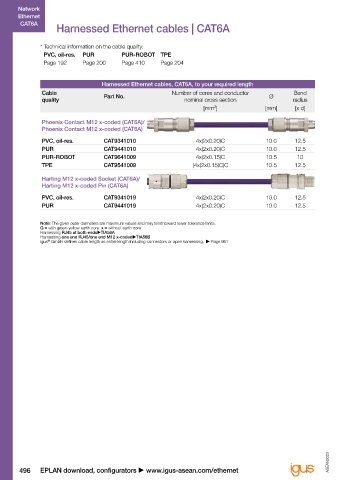

Page 502 - ASEAN Chainflex Catalogue 2023

Network Network
Ethernet Ethernet
CAT6A CAT7
Harnessed Ethernet cables | CAT6A Harnessed Ethernet cables | CAT7

* Technical information on the cable quality: * Technical information on the cable quality:
PVC, oil-res. PUR PUR-ROBOT TPE PUR-ROBOT TPE
Page 192 Page 200 Page 410 Page 204 Page 410 Page 204

Harnessed Ethernet cables, CAT6A, to your required length Harnessed Ethernet cables, CAT7, to your required length
Cable Part No. Number of cores and conductor Ø Bend Cable Number of cores and conductor Bend
quality nominal cross section radius quality Part No. nominal cross section Ø radius
[mm²] [mm] [x d] [mm²] [mm] [x d]

Phoenix Contact M12 x-coded (CAT6A)/ Telegärtner RJ45 (CAT6A)/
Phoenix Contact M12 x-coded (CAT6A) Telegärtner RJ45 (CAT6A)
PVC, oil-res. CAT9341010 4x(2x0.20)C 10.0 12.5 PUR-ROBOT CAT9651002 4x(2x0.15)C 10.5 10
PUR CAT9441010 4x(2x0.20)C 10.0 12.5 TPE CAT9551002 (4x(2x0.15)C)C 10.5 12.5
PUR-ROBOT CAT9641009 4x(2x0.15)C 10.5 10
TPE CAT9541009 (4x(2x0.15)C)C 10.5 12.5 Harting RJ45 (CAT6A)/
Harting RJ45 (CAT6A)
Harting M12 x-coded Socket (CAT6A)/ PUR-ROBOT CAT9651003 4x(2x0.15)C 10.5 10
Harting M12 x-coded Pin (CAT6A)
TPE CAT9551003 1) (4x(2x0.15)C)C 10.5 12.5
PVC, oil-res. CAT9341019 4x(2x0.20)C 10.0 12.5
PUR CAT9441019 4x(2x0.20)C 10.0 12.5 Telegärtner RJ45 (CAT6A)/
Telegärtner RJ45 (CAT6A)

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. PUR-ROBOT CAT9651004 4x(2x0.15)C 10.5 10
G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A TPE CAT9551004 (4x(2x0.15)C)C 10.5 12.5
Harnessing one end RJ45/one end M12 x-codedTIA56B
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
Telegärtner RJ45 (CAT6A)/
Telegärtner RJ45 angled (CAT6A)

PUR-ROBOT CAT9651005 4x(2x0.15)C 10.5 10
TPE CAT9551005 (4x(2x0.15)C)C 10.5 12.5

Phoenix Contact M12 x-coded (CAT6A)/
Phoenix Contact M12 x-coded (CAT6A)

PUR-ROBOT CAT9651009 4x(2x0.15)C 10.5 10
TPE CAT9551009 (4x(2x0.15)C)C 10.5 12.5

Dätwyler Module PS-TERA (CAT7A)/
Dätwyler Connector PS-TERA (CAT7A)

PUR-ROBOT CAT9651010 4x(2x0.15)C 10.5 10
TPE CAT9551010 (4x(2x0.15)C)C 10.5 12.5

Dätwyler Module PS-TERA (CAT7A)/
Dätwyler Connector PS-TERA (CAT7A)

PUR-ROBOT CAT9651011 4x(2x0.15)C 10.5 10
TPE CAT9551011 (4x(2x0.15)C)C 10.5 12.5

1) This cable must be stripped before the connector and covered with a shrink-on tube so that the patch plug can be fitted.

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A
ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
