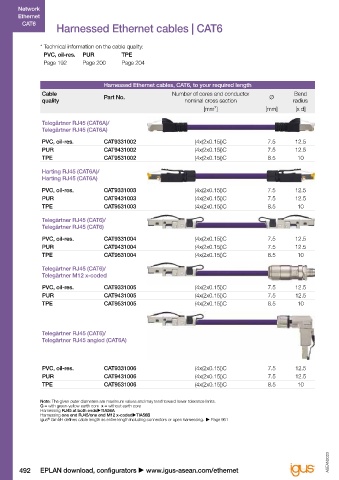

Page 498 - ASEAN Chainflex Catalogue 2023

Network Network
Ethernet Ethernet
CAT6 CAT6
Harnessed Ethernet cables | CAT6 Harnessed Ethernet cables | CAT6

* Technical information on the cable quality: * Technical information on the cable quality:
PVC, oil-res. PUR TPE PVC, oil-res. PUR TPE
Page 192 Page 200 Page 204 Page 192 Page 200 Page 204

Harnessed Ethernet cables, CAT6, to your required length Harnessed Ethernet cables, CAT6, to your required length
Cable Part No. Number of cores and conductor Ø Bend Cable Part No. Number of cores and conductor Ø Bend
quality nominal cross section radius quality nominal cross section radius
[mm²] [mm] [x d] [mm²] [mm] [x d]

Telegärtner RJ45 (CAT6A)/ Phoenix Contact RJ45 (CAT6A)/
Telegärtner RJ45 (CAT6A) Phoenix Contact RJ45 (CAT6A)
PVC, oil-res. CAT9331002 (4x(2x0.15))C 7.5 12.5 PVC, oil-res. CAT9331009 (4x(2x0.15))C 7.5 12.5
PUR CAT9431002 (4x(2x0.15))C 7.5 12.5 PUR CAT9431009 (4x(2x0.15))C 7.5 12.5
TPE CAT9531002 (4x(2x0.15))C 8.5 10 TPE CAT9531009 (4x(2x0.15))C 8.5 10

Harting RJ45 (CAT6A)/ Phoenix Contact M12 x-coded (CAT6A)/
Harting RJ45 (CAT6A) Phoenix Contact M12 x-coded (CAT6A)

PVC, oil-res. CAT9331003 (4x(2x0.15))C 7.5 12.5 PVC, oil-res. CAT9331012 (4x(2x0.15))C 7.5 12.5
PUR CAT9431003 (4x(2x0.15))C 7.5 12.5 PUR CAT9431012 (4x(2x0.15))C 7.5 12.5
TPE CAT9531003 (4x(2x0.15))C 8.5 10 TPE CAT9531012 (4x(2x0.15))C 8.5 10

Telegärtner RJ45 (CAT6)/ Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Telegärtner RJ45 (CAT6) G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A
PVC, oil-res. CAT9331004 (4x(2x0.15))C 7.5 12.5 Harnessing one end RJ45/one end M12 x-codedTIA56B
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
PUR CAT9431004 (4x(2x0.15))C 7.5 12.5
TPE CAT9531004 (4x(2x0.15))C 8.5 10
Telegärtner RJ45 (CAT6)/
Telegärtner M12 x-coded
PVC, oil-res. CAT9331005 (4x(2x0.15))C 7.5 12.5
PUR CAT9431005 (4x(2x0.15))C 7.5 12.5
TPE CAT9531005 (4x(2x0.15))C 8.5 10

Telegärtner RJ45 (CAT6)/
Telegärtner RJ45 angled (CAT6A)

PVC, oil-res. CAT9331006 (4x(2x0.15))C 7.5 12.5
PUR CAT9431006 (4x(2x0.15))C 7.5 12.5
TPE CAT9531006 (4x(2x0.15))C 8.5 10

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Harnessing RJ45 at both endsTIA56A
Harnessing one end RJ45/one end M12 x-codedTIA56B
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961

ASEAN2023 ASEAN2023

492 EPLAN download, configurators  www.igus-asean.com/ethernet 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 493
®
