Information | DIN 47100 colour code Information | Copper price

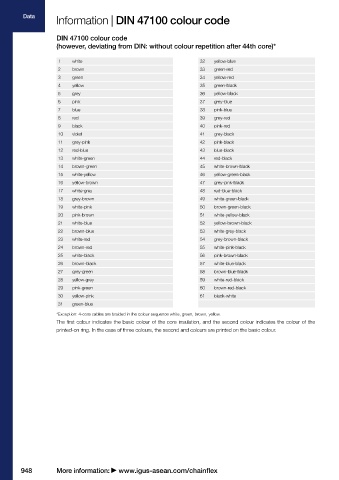

DIN 47100 colour code
(however, deviating from DIN: without colour repetition after 44th core)*

1 white 32 yellow-blue Calculation of the copper surcharge
2 brown 33 green-red The copper surcharge is the calculation of the difference between the calculated price (copper basis) and the actual
3 green 34 yellow-red price listed on the stock exchange of the copper share in a cable. In calculatory terms, the price of each chainflex cable
®
4 yellow 35 green-black listed in the catalogue is based on a copper price to the amount of €150.–/100kg copper.
5 grey 36 yellow-black
6 pink 37 grey-blue Calculation of the copper surcharge:
7 blue 38 pink-blue LME (London Metal Exchange) price in USD/ton
1
8 red 39 grey-red ECB exchange rate, USD/euro
9 black 40 pink-red Plus surcharges
10 violet 41 grey-black
11 grey-pink 42 pink-black 1 LME stands for London Metal Exchange.
12 red-blue 43 blue-black Together with Shanghai and New York, it is one of the world's largest metal trading centres.This basis has
13 white-green 44 red-black been used in Europe for many decades to determine the copper price listed on the stock.
14 brown-green 45 white-brown-black
15 white-yellow 46 yellow-green-black
More Information online
16 yellow-brown 47 grey-pink-black igus-asean.com/CF-copper Calculate the copper surcharge online
17 white-grey 48 red-blue-black The copper surcharge can
18 grey-brown 49 white-green-black be calculated directly for
®
19 white-pink 50 brown-green-black each chainflex cable and
individual length in our
20 pink-brown 51 white-yellow-black
copper surcharge calculator
21 white-blue 52 yellow-brown-black ®
on the igus website:
22 brown-blue 53 white-grey-black
23 white-red 54 grey-brown-black igus-asean.com/quickcopper
24 brown-red 55 white-pink-black
25 white-black 56 pink-brown-black
26 brown-black 57 white-blue-black
27 grey-green 58 brown-blue-black
28 yellow-grey 59 white-red-black Copper wire dimensions according to Anglo-American AWG numbers
29 pink-green 60 brown-red-black Diameter Cross section Diameter Cross section
30 yellow-pink 61 black-white AWG No. [mm] [mm ] AWG No. [mm] [mm ]
2
2
31 green-blue
500 17.96 253.00 18 1.024 0.823
*Exception: 4-core cables are braided in the colour sequence white, green, brown, yellow. 350 15.03 177.00 20 0.813 0.519
The first colour indicates the basic colour of the core insulation, and the second colour indicates the colour of the 250 12.70 127.00 22 0.643 0.324
printed-on ring. In the case of three colours, the second and colours are printed on the basic colour. 4/0 11.88 107.20 24 0.511 0.205
3/0 10.40 85.00 26 0.405 0.128
2/0 9.27 67.50 28 0.320 0.0804
1/0 8.25 53.50 30 0.255 0.0507
1 7.35 42.40 32 0.203 0.0324
2 6.54 33.60 34 0.160 0.0200
4 5.19 21.20 36 0.127 0.0127
6 4.12 13.30 38 0.102 0.00811
8 3.26 8.37 40 0.079 0.00487
10 2.59 5.26 42 0.064 0.00317
12 2.05 3.31 44 0.051 0.00203
14 1.63 2.08
16 1.29 1.31
