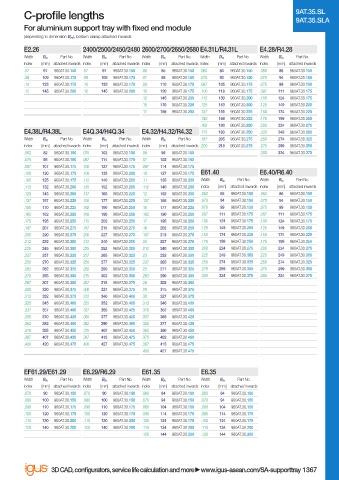

C-profi le lengths 9AT.35.SL
9AT.35.SLA
For aluminium support tray with fi xed end module
(depending to dimension B Ri ), bottom clamp attached inwards
E2.26 2400/2500/2450/2480 2600/2700/2650/2680E4.31L/R4.31L E4.28/R4.28
Width B Ri Part No. Width B Ri Part No. Width B Ri Part No. Width B Ri Part No. Width B Ri Part No.
index [mm] attached inwards index [mm] attached inwards index [mm] attached inwards index [mm] attached inwards index [mm] attached inwards
.07 97 960AT.30.150 .07 97 960AT.30.150 .06 85 960AT.30.150 .062 80 960AT.30.150 .062 86 960AT.30.150
.09 109 960AT.30.175 .09 109 960AT.30.175 .07 95 960AT.30.150 .075 93 960AT.30.150 .070 94 960AT.30.150
.10 123 960AT.30.175 .10 123 960AT.30.175 .09 110 960AT.30.175 .087 105 960AT.30.175 .075 99 960AT.30.150
.12 145 960AT.30.200 .12 145 960AT.30.200 .10 120 960AT.30.175 .100 118 960AT.30.175 .087 111 960AT.30.175
.12 145 960AT.30.200 .112 130 960AT.30.200 .100 124 960AT.30.175
.15 170 960AT.30.225 .125 143 960AT.30.200 .125 149 960AT.30.200
.17 198 960AT.30.250 .137 155 960AT.30.225 .150 174 960AT.30.225
.150 168 960AT.30.225 .175 199 960AT.30.250
.162 180 960AT.30.250 .200 224 960AT.30.275
E4.38L/R4.38L E4Q.34/H4Q.34 E4.32/H4.32/R4.32 .175 193 960AT.30.250 .225 249 960AT.30.300
Width B Ri Part No. Width B Ri Part No. Width B Ri Part No. .187 205 960AT.30.275 .250 274 960AT.30.325
index [mm] attached inwards index [mm] attached inwards index [mm] attached inwards .200 218 960AT.30.275 .275 299 960AT.30.350
.062 82 960AT.30.150 .075 102 960AT.30.150 .06 95 960AT.30.150 .300 324 960AT.30.375
.075 95 960AT.30.150 .087 114 960AT.30.175 .07 102 960AT.30.150
.087 107 960AT.30.175 .100 127 960AT.30.175 .087 114 960AT.30.175
.100 120 960AT.30.175 .108 135 960AT.30.200 .10 127 960AT.30.175 E61.40 E6.40/R6.40
.105 125 960AT.30.175 .112 140 960AT.30.200 .11 135 960AT.30.200 Width B Ri Part No. Width B Ri Part No.
.112 132 960AT.30.200 .125 152 960AT.30.200 .112 140 960AT.30.200 index [mm] attached inwards index [mm] attached inwards
.125 145 960AT.30.200 .137 165 960AT.30.225 .12 152 960AT.30.200 .062 86 960AT.30.150 .062 86 960AT.30.150
.137 157 960AT.30.225 .150 177 960AT.30.225 .137 165 960AT.30.225 .070 94 960AT.30.150 .070 94 960AT.30.150
.150 170 960AT.30.225 .162 190 960AT.30.250 .15 177 960AT.30.225 .075 99 960AT.30.150 .075 99 960AT.30.150
.162 182 960AT.30.250 .168 195 960AT.30.250 .162 190 960AT.30.250 .087 111 960AT.30.175 .087 111 960AT.30.175
.175 195 960AT.30.250 .175 202 960AT.30.250 .17 195 960AT.30.250 .100 124 960AT.30.175 .100 124 960AT.30.175
.187 207 960AT.30.275 .187 215 960AT.30.275 .18 202 960AT.30.250 .125 149 960AT.30.200 .125 149 960AT.30.200
.200 220 960AT.30.275 .200 227 960AT.30.275 .187 215 960AT.30.275 .150 174 960AT.30.225 .150 174 960AT.30.225
.212 232 960AT.30.300 .212 240 960AT.30.300 .20 227 960AT.30.275 .175 199 960AT.30.250 .175 199 960AT.30.250
.225 245 960AT.30.300 .225 252 960AT.30.300 .212 240 960AT.30.300 .200 224 960AT.30.275 .200 224 960AT.30.275
.237 257 960AT.30.325 .237 265 960AT.30.325 .23 252 960AT.30.300 .225 249 960AT.30.300 .225 249 960AT.30.300
.250 270 960AT.30.325 .250 277 960AT.30.325 .237 265 960AT.30.325 .250 274 960AT.30.325 .250 274 960AT.30.325
.262 282 960AT.30.325 .262 290 960AT.30.350 .25 277 960AT.30.325 .275 299 960AT.30.350 .275 299 960AT.30.350
.275 295 960AT.30.350 .275 302 960AT.30.350 .262 290 960AT.30.350 .300 324 960AT.30.375 .300 324 960AT.30.375
.287 307 960AT.30.350 .287 315 960AT.30.375 .28 302 960AT.30.350
.300 320 960AT.30.375 .300 327 960AT.30.375 .29 315 960AT.30.375
.312 332 960AT.30.375 .312 340 960AT.30.400 .30 327 960AT.30.375
.325 345 960AT.30.400 .325 352 960AT.30.400 .312 340 960AT.30.400
.337 357 960AT.30.400 .337 365 960AT.30.425 .325 352 960AT.30.400
.350 370 960AT.30.425 .350 377 960AT.30.425 .337 365 960AT.30.425
.362 382 960AT.30.450 .362 390 960AT.30.450 .350 377 960AT.30.425
.375 395 960AT.30.450 .375 402 960AT.30.450 .362 390 960AT.30.450
.387 407 960AT.30.450 .387 415 960AT.30.475 .375 402 960AT.30.450
.400 420 960AT.30.475 .400 427 960AT.30.475 .387 415 960AT.30.475
.400 427 960AT.30.475

EF61.29/E61.29 E6.29/R6.29 E61.35 E6.35
Width B Ri Part No. Width B Ri Part No. Width B Ri Part No. Width B Ri Part No.
index [mm] attached inwards index [mm] attached inwards index [mm] attached inwards index [mm] attached inwards
.070 90 960AT.30.150 .070 90 960AT.30.150 .060 84 960AT.30.150 .060 84 960AT.30.150
.080 100 960AT.30.150 .080 100 960AT.30.150 .070 94 960AT.30.150 .070 94 960AT.30.150
.090 110 960AT.30.175 .090 110 960AT.30.175 .080 104 960AT.30.150 .080 104 960AT.30.150
.100 120 960AT.30.175 .100 120 960AT.30.175 .090 114 960AT.30.175 .090 114 960AT.30.175
.110 130 960AT.30.200 .110 130 960AT.30.200 .100 124 960AT.30.175 .100 124 960AT.30.175
.120 140 960AT.30.200 .120 140 960AT.30.200 .110 134 960AT.30.200 .110 134 960AT.30.200
.120 144 960AT.30.200 .120 144 960AT.30.200

3D CAD, confi gurators, service life calculation and more www.igus-asean.com/SA-supporttray 1367
