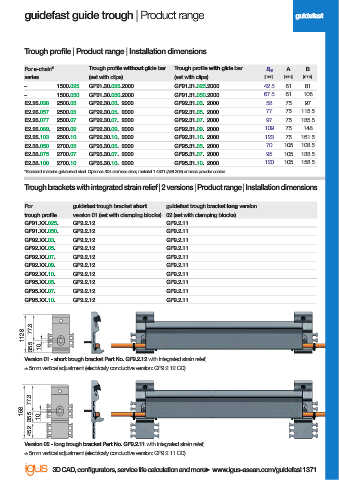

guidefast guide trough | Product range                              guidefast




                        Trough profi le | Product range | Installation dimensions

                        For e-chain ®   Trough profi le without glide bar  Trough profi le with glide bar  B Ri  A  B
                        series          (set with clips)      (set with clips)      [mm]  [mm]  [mm]
                        –       1500.025.  GF91.30.025.2000   GF91.31.025.2000      42.5  61  81
                        –       1500.050.  GF91.30.050.2000   GF91.31.050.2000      67.5  61  106
                        E2.26.038.  2500.03.  GF92.30.03. 2000  GF92.31.03. 2000     58   75  97
                        E2.26.057.  2500.05.  GF92.30.05. 2000  GF92.31.05. 2000     77   75  115.5
                        E2.26.077.  2500.07.  GF92.30.07. 2000  GF92.31.07. 2000     97   75  135.5
                        E2.26.089.  2500.09.  GF92.30.09. 2000  GF92.31.09. 2000    109   75  148
                        E2.26.103  2500.10.  GF92.30.10. 2000  GF92.31.10. 2000     123   75  161.5
                        E2.38.050.  2700.05.  GF95.30.05. 2000  GF95.31.05. 2000     70  105  108.5
                        E2.38.075.  2700.07.  GF95.30.07. 2000  GF95.31.07. 2000     95  105  133.5
                        E2.38.100.  2700.10.  GF95.30.10. 2000  GF95.31.10. 2000    120  105  158.5
                        *Standard material: galvanised steel. Optional: 304 stainless steel, material 1.4301 (AiSI 304) or black powder coated
                        Trough brackets with integrated strain relief | 2 versions | Product range | Installation dimensions

                        For         guidefast trough bracket short   guidefast trough bracket long version
                        trough profi le  version 01 (set with clamping blocks) 02 (set with clamping blocks)
                        GF91.XX.025.  GF9.2.12              GF9.2.11
                        GF91.XX.050.  GF9.2.12              GF9.2.11
                        GF92.XX.03.  GF9.2.12               GF9.2.11
                        GF92.XX.05.  GF9.2.12               GF9.2.11
                        GF92.XX.07.  GF9.2.12               GF9.2.11
                        GF92.XX.09.  GF9.2.12               GF9.2.11
                        GF92.XX.10.  GF9.2.12               GF9.2.11
                        GF95.XX.05.  GF9.2.12               GF9.2.11
                        GF95.XX.07.  GF9.2.12               GF9.2.11
                        GF95.XX.10.  GF9.2.12               GF9.2.11


                          77.3
                        112.8
                          35.5  10

                        Version 01 - short trough bracket Part No. GF9.2.12 with integrated strain relief,
                        ± 5mm vertical adjustment (electrically conductive version: GF9.2.12.CD)



                          77.3
                        158
                          35.5  10
                          45.2
                        Version 02 - long trough bracket Part No. GF9.2.11 with integrated strain relief,
                        ± 5mm vertical adjustment (electrically conductive version: GF9.2.11.CD)
