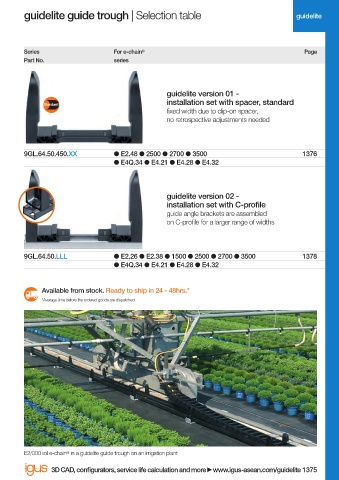

guidelite guide trough | Selection table guidelite

Series For e-chain ® Page
Part No. series

guidelite version 01 -
installation set with spacer, standard
fi xed width due to clip-on spacer,
no retrospective adjustments needed

9GL.64.50.450.XX ● E2.48 ● 2500 ● 2700 ● 3500 1376
● E4Q.34 ● E4.21 ● E4.28 ● E4.32

guidelite version 02 -
installation set with C-profi le
guide angle brackets are assembled
on C-profi le for a larger range of widths

9GL.64.50.LLL ● E2.26 ● E2.38 ● 1500 ● 2500 ● 2700 ● 3500 1378
● E4Q.34 ● E4.21 ● E4.28 ● E4.32

Available from stock. Ready to ship in 24 - 48hrs.*
*Average time before the ordered goods are dispatched.

E2/000 rol e-chain ® in a guidelite guide trough on an irrigation plant
3D CAD, confi gurators, service life calculation and more www.igus-asean.com/guidelite 1375
