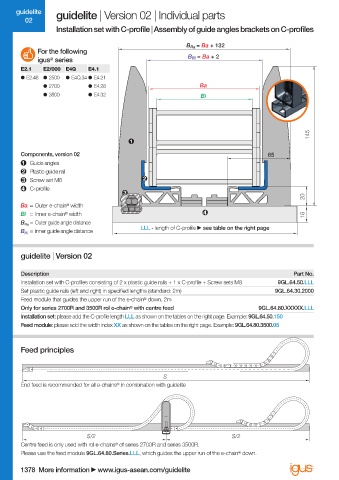

guidelite guidelite | Version 02 | Individual parts
02
Installation set with C-profile | Assembly of guide angles brackets on C-profiles

B Ra = Ba + 132
For the following
B Ri = Ba + 2
®
igus series
E2.1 E2/000 E4Q E4.1
● E2.48 ● 2500 ● E4Q.34 ● E4.21
● 2700 ● E4.28 Ba
● 3500 ● E4.32 Bi

145

Components, version 02 65
Guide angles
Plastic guide rail
Screw set M8
C-profi le
20
Ba = Outer e-chain ® width
Bi = Inner e-chain ® width 18
B Ra = Outer guide angle distance
LLL - length of C-profi le see table on the right page
B Ri = inner guide angle distance

guidelite | Version 02

Description Part No.
Installation set with C-profi les consisting of 2 x plastic guide rails + 1 x C-profi le + Screw sets M8 9GL.64.50.LLL
Set plastic guide rails (left and right) in specifi ed lengths (standard: 2m) 9GL.64.30.2000
Feed module that guides the upper run of the e-chain ® down, 2m
Only for series 2700R and 3500R rol e-chain ® with centre feed 9GL.64.80.XXXXX.LLL
Installation set: please add the C-profi le length LLL as shown on the tables on the right page. Example: 9GL.64.50.150
Feed module: please add the width index XX as shown on the tables on the right page. Example: 9GL.64.80.3500.05

Feed principles

S
End feed is recommended for all e-chains ® in combination with guidelite

S/2 S/2
Centre feed is only used with rol e-chains ® of series 2700R and series 3500R.
Please use the feed module 9GL.64.80.Series.LLL, which guides the upper run of the e-chain ® down.
