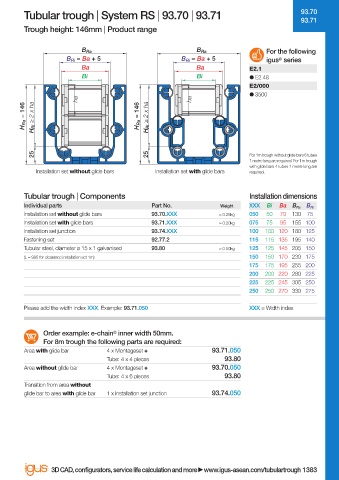

Page 1385 - IGUS ECS CATALOG

Tubular trough | System RS | 93.70 | 93.71 93.70
93.71
Trough height: 146mm | Product range

B Ra B Ra For the following
B Ri = Ba + 5 B Ri = Ba + 5 igus series
®
Ba Ba E2.1
Bi Bi ● E2.48
E2/000
● 3500
ha ha
H Ra = 146 H Ri ≥ 2 x ha H Ra = 146 H Ri ≥ 2 x ha

25 25 For 1m trough without glide bars 6 tubes
1 metre long are required. For 1m trough
with glide bars 4 tubes 1 metre long are
Installation set without glide bars Installation set with glide bars required.

Tubular trough | Components Installation dimensions
Individual parts Part No. Weight XXX Bi Ba B Ra B Ri
Installation set without glide bars 93.70.XXX ≈ 0.25kg 050 50 70 130 75
Installation set with glide bars 93.71.XXX ≈ 0.20kg 075 75 95 155 100
Installation set junction 93.74.XXX 100 100 120 180 125
Fastening set 92.77.2 115 115 135 195 140
Tubular steel, diameter ø 15 x 1 galvanised 93.80 ≈ 0.50kg 125 125 145 205 150
(L = 985 for clearance installation set 1m) 150 150 170 230 175
175 175 195 255 200
200 200 220 280 225
225 225 245 305 250
250 250 270 330 275

Please add the width index XXX. Example: 93.71.050 XXX = Width index

®
Order example: e-chain inner width 50mm.
For 8m trough the following parts are required:
Area with glide bar 4 x Montageset + 93.71.050
Tube: 4 x 4 pieces 93.80
Area without glide bar 4 x Montageset + 93.70.050
Tube: 4 x 6 pieces 93.80
Transition from area without
glide bar to area with glide bar 1 x installation set junction 93.74.050

3D CAD, confi gurators, service life calculation and more www.igus-asean.com/tubulartrough 1383
