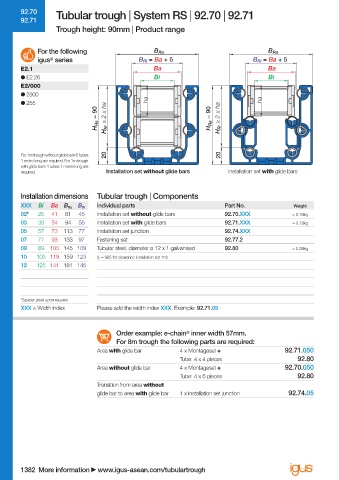

92.70 Tubular trough | System RS | 92.70 | 92.71
92.71
Trough height: 90mm | Product range

For the following B Ra B Ra
igus series B Ri = Ba + 5 B Ri = Ba + 5
®
E2.1 Ba Ba
● E2.26 Bi Bi
E2/000
● 2500
● 255 ha ha
H Ra = 90 H Ri ≥ 2 x ha H Ra = 90 H Ri ≥ 2 x ha

20 20
For 1m trough without glide bars 6 tubes
1 metre long are required. For 1m trough
with glide bars 4 tubes 1 metre long are
required. Installation set without glide bars Installation set with glide bars
Installation dimensions Tubular trough | Components
XXX Bi Ba B Ra B Ri Individual parts Part No. Weight
02* 25 41 81 45 Installation set without glide bars 92.70.XXX ≈ 0.15kg
03 38 54 94 58 Installation set with glide bars 92.71.XXX ≈ 0.12kg
05 57 73 113 77 Installation set junction 92.74.XXX
07 77 93 133 97 Fastening set 92.77.2
09 89 105 145 109 Tubular steel, diameter ø 12 x 1 galvanised 92.80 ≈ 0.28kg
10 103 119 159 123 (L = 985 for clearance installation set 1m)
12 125 141 181 145

*Spacer plate upon request
XXX = Width index Please add the width index XXX. Example: 92.71.05

Order example: e-chain inner width 57mm.
®
For 8m trough the following parts are required:
Area with glide bar 4 x Montageset + 92.71.050
Tube: 4 x 4 pieces 92.80
Area without glide bar 4 x Montageset + 92.70.050
Tube: 4 x 6 pieces 92.80
Transition from area without
glide bar to area with glide bar 1 x installation set junction 92.74.05

1382 More information www.igus-asean.com/tubulartrough
