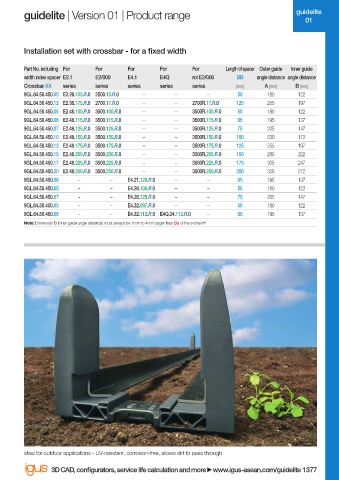

guidelite | Version 01 | Product range guidelite
01

Installation set with crossbar - for a fi xed width

Part No. including For For For For For Length of spacer Outer guide Inner guide
width index spacer E2.1 E2/000 E4.1 E4Q rol E2/000 BB angle distance angle distance
Crossbar XX series series series series series [mm] A [mm] B [mm]
9GL.64.50.450.05 E2.26.103.R.0 2500.10.R.0 – – – 50 180 122
9GL.64.50.450.12 E2.38.175.R.0 2700.17.R.0 – – 2700R.17.R.0 125 255 197
9GL.64.50.450.05 E2.48.100.R.0 3500.100.R.0 – – 3500R.100.R.0 50 180 122
9GL.64.50.450.06 E2.48.115.R.0 3500.115.R.0 – – 3500R.115.R.0 65 195 137
9GL.64.50.450.07 E2.48.125.R.0 3500.125.R.0 – – 3500R.125.R.0 75 205 147
9GL.64.50.450.10 E2.48.150.R.0 3500.150.R.0 – – 3500R.150.R.0 100 230 172
9GL.64.50.450.12 E2.48.175.R.0 3500.175.R.0 – – 3500R.175.R.0 125 255 197
9GL.64.50.450.15 E2.48.200.R.0 3500.200.R.0 – – 3500R.200.R.0 150 280 222
9GL.64.50.450.17 E2.48.225.R.0 3500.225.R.0 – – 3500R.225.R.0 175 305 247
9GL.64.50.450.20 E2.48.250.R.0 3500.250.R.0 – – 3500R.250.R.0 200 330 272
9GL.64.50.450.06 – – E4.21.120.R.0 – – 65 195 137
9GL.64.50.450.05 – – E4.28.100.R.0 – – 50 180 122
9GL.64.50.450.07 – – E4.28.125.R.0 – – 75 205 147
9GL.64.50.450.05 – – E4.32.097.R.0 – – 50 180 122
9GL.64.50.450.06 – – E4.32.112.R.0 E4Q.34.112.R.0 – 65 195 137
Note: Dimension B (inner guide angle distance) must always be 1mm to 4mm larger than Ba of the e-chain ® !

Ideal for outdoor applications - UV-resistant, corrosion-free, allows dirt to pass through
3D CAD, confi gurators, service life calculation and more www.igus-asean.com/guidelite 1377
